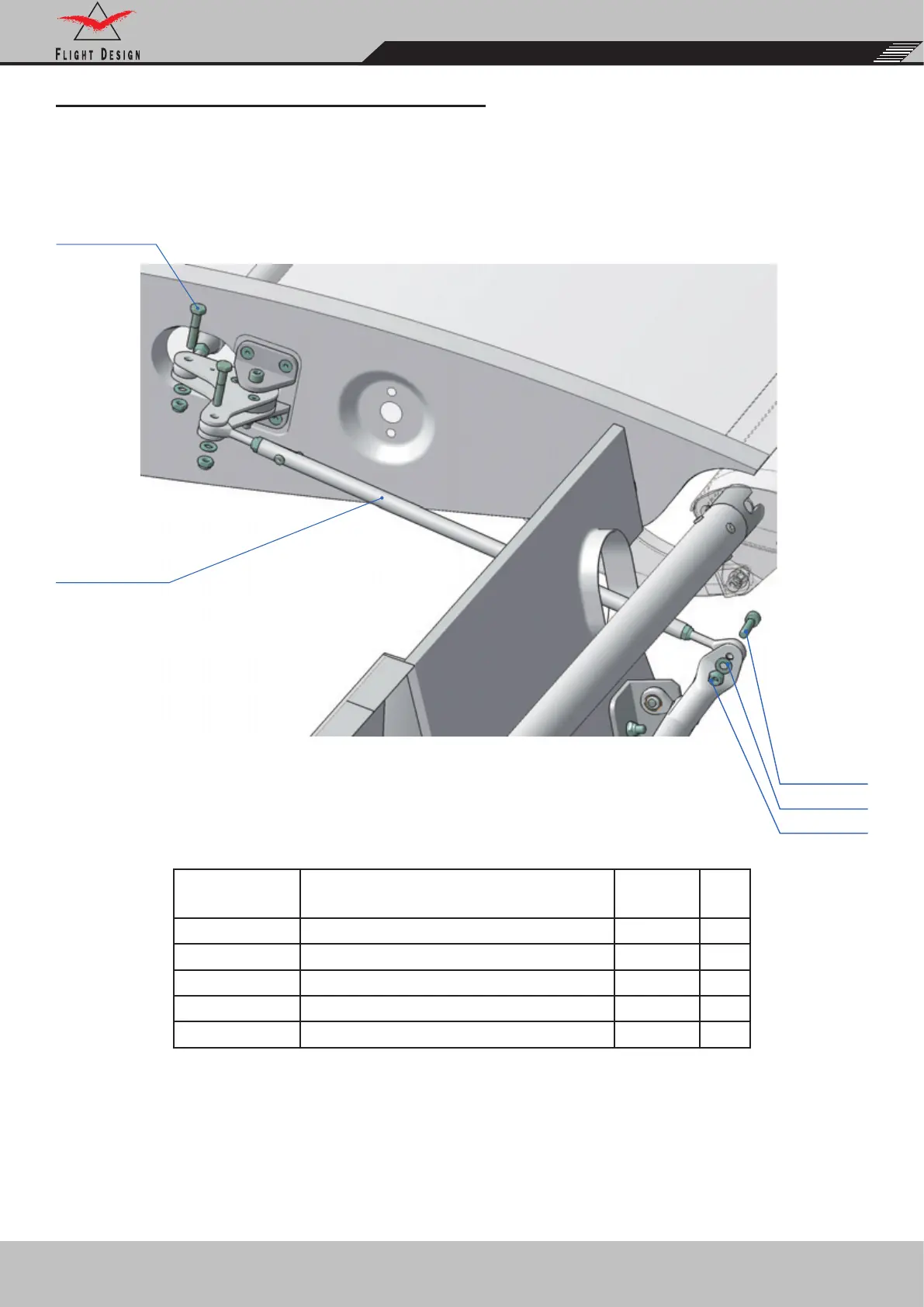

FLIGHT DESIGN CT2K - KA6020050 R Aileron Control Rod Rib Box

To Next Page

To Previous Page

Chapter 6: Flight Control

204

Part Number Description

Q-ty per

ASSY

Unit

KA6020050R Aileron control rod rib box 1 pcs

С9996061 Bolt DIN 912 M6x40-8.8 1 pcs

KA6020021 Bolt M6x26 2 pcs

C9996334 Self-locking nut DIN 985-M6, regular 3 pcs

C9996504 Washer DIN 125 A2B-6.4mm 3 pcs

KA6020050R - AILERON CONTROL ROD RIB BOX

KA6020050R

С9996061

C9996504

C9996334

KA6020021
