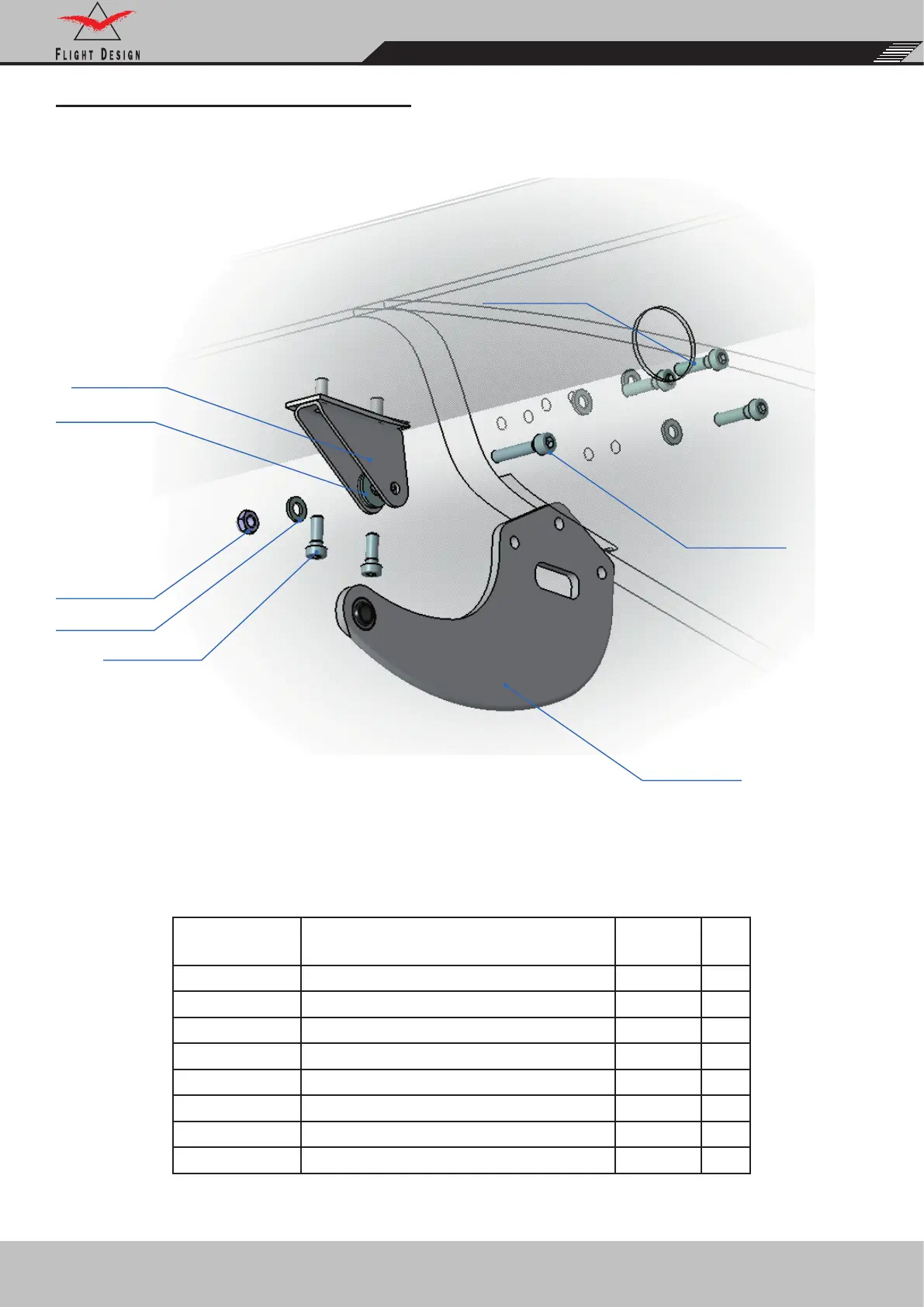

FLIGHT DESIGN CT2K - WA2010020 - Pivot, Wing No2, Right

To Next Page

To Previous Page

Chapter 2: Wings

C9996334

C9996504

WA2020007

Part Number Description

Q-ty per

ASSY

Unit

WA2010020

Pivot, Wing No2 1 pcs

WA2020007

Bolt 1 pcs

WA2040020R

Pivot, Flap No.2, Right 1 pcs

C9996334 Self-locking nut DIN 985-M6, regular 1 pcs

C9996504 Washer DIN 125 A2B-6.4mm 4 pcs

C9996565 Washer DIN 9021-6.4mm VZ 4 pcs

C9996058C Bolt DIN 6912 M6x25, A2-70 3 pcs

C9996145B Bolt DIN 7984-M6x16-A2 2 pcs

WA2010020

C9996565

C9996058C

WA2040020R

C9996145B
