FLIGHT DESIGN CT2K - Fuel Valve Hard Assembly

To Next Page

To Previous Page

Chapter 7: Systems

309

Part

Number

Description

Q-ty per

ASSY

Unit

KB7020005 Handle 1 pcs

KB7020006 Support 1 pcs

KB7020007 Lever 1 pcs

C9996161 Screw ISO 7380 M5x12 3 pcs

C9996207 Bolt DIN 7991 M5x16-8.8 1 pcs

C9996333 Self-locking nut DIN 985-M5, regular 1 pcs

C9997010 Angle joint M 5 1 pcs

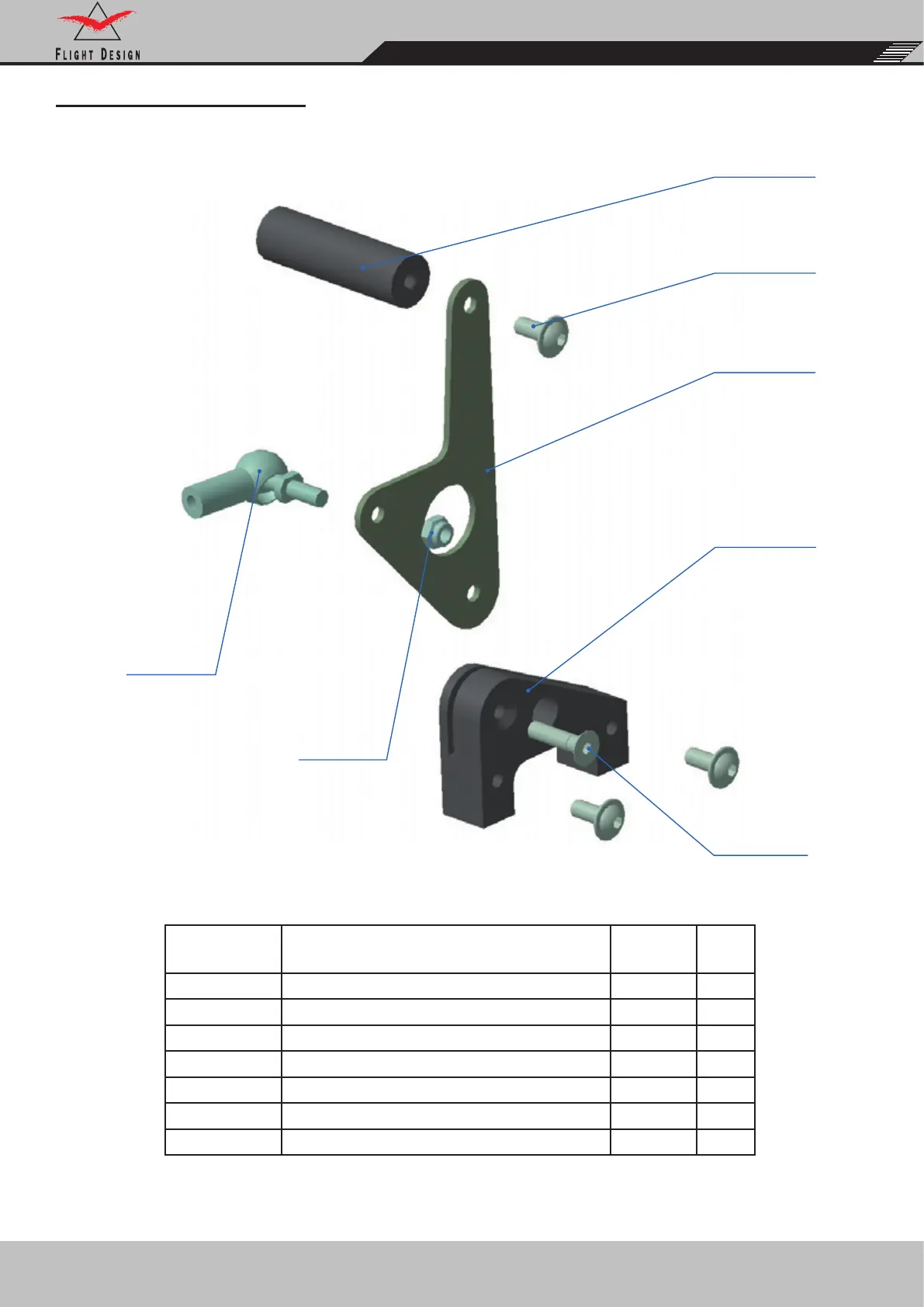

FUEL VALVE HARD ASSEMBLY

KB7020005

KB7020006

KB7020007

C9996161

C9996207

C9996333

C9997010
