FLIGHT DESIGN CT2K - KA7040400

To Next Page

To Previous Page

Chapter 7: Systems

334

Part

Number

Description

Q-ty per

ASSY

Unit

KA7040002 Tap 2 pcs

KA7040400 Air branch canal 1 pcs

C9993188 AERODUCT tube CEET-7 1-3/4 ID 0.2 m

C9997723 Clamp 40-60 2 pcs

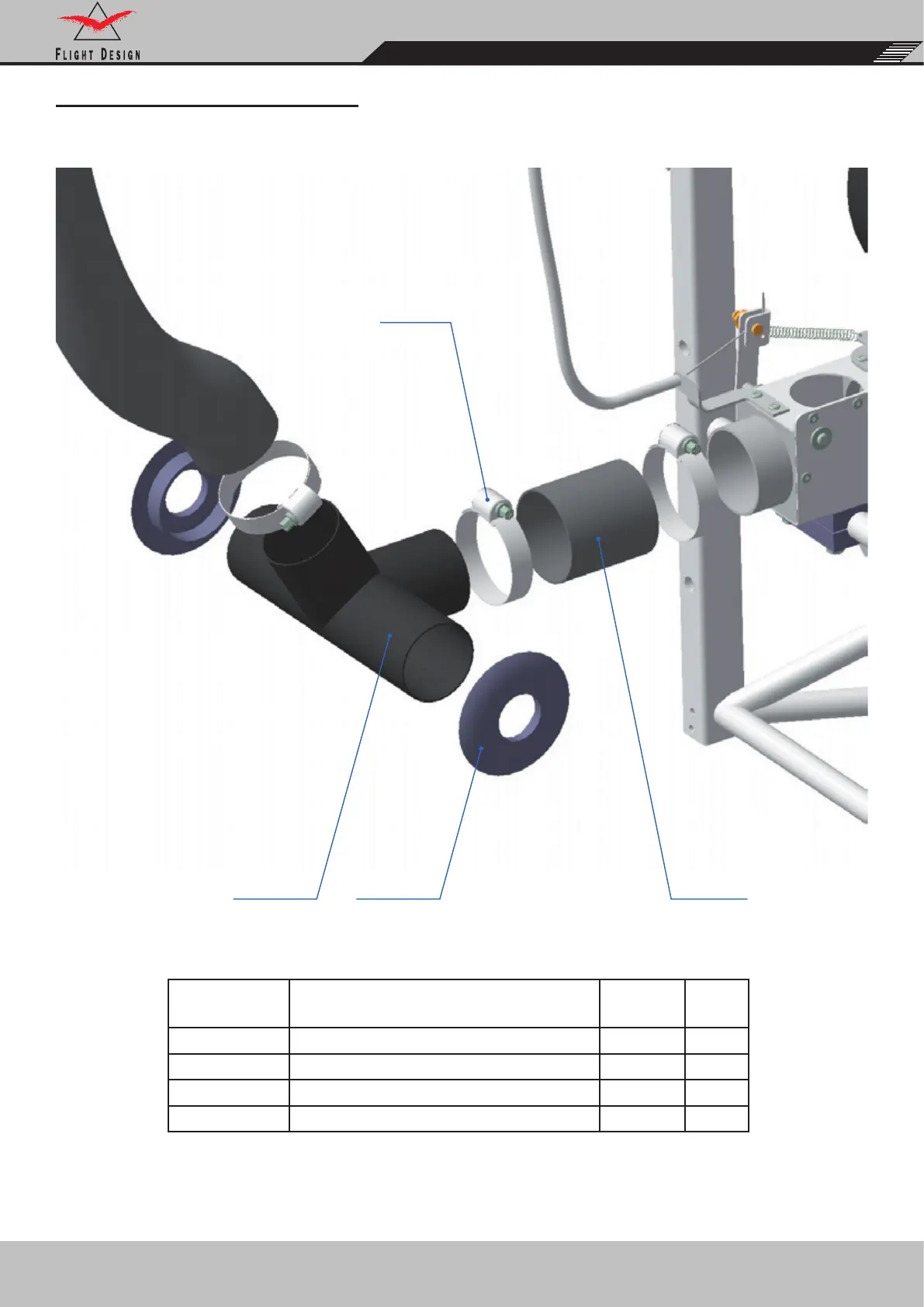

KA7040400 - AIR BRANCH CANAL

KA7040002KA7040400

C9993188

C9997723
