FLIGHT DESIGN CT2K - KA2010030 R Wing Pivot No3, Right

To Next Page

To Previous Page

Chapter 2: Wings

Part Number Description

Q-ty per

ASSY

Unit

KA2010030R Wing pivot No3, right 1 pcs

KA2020005 Bolt 1 pcs

C9996286K Bolt DIN 912 M6x16, A4 2 pcs

C9996334 Self-locking nut DIN 985-M6, regular 2 pcs

C9996504 Washer DIN 125 A2B-6.4mm 2 pcs

C9996286P Bolt DIN 912 M6x35, A4 1 pcs

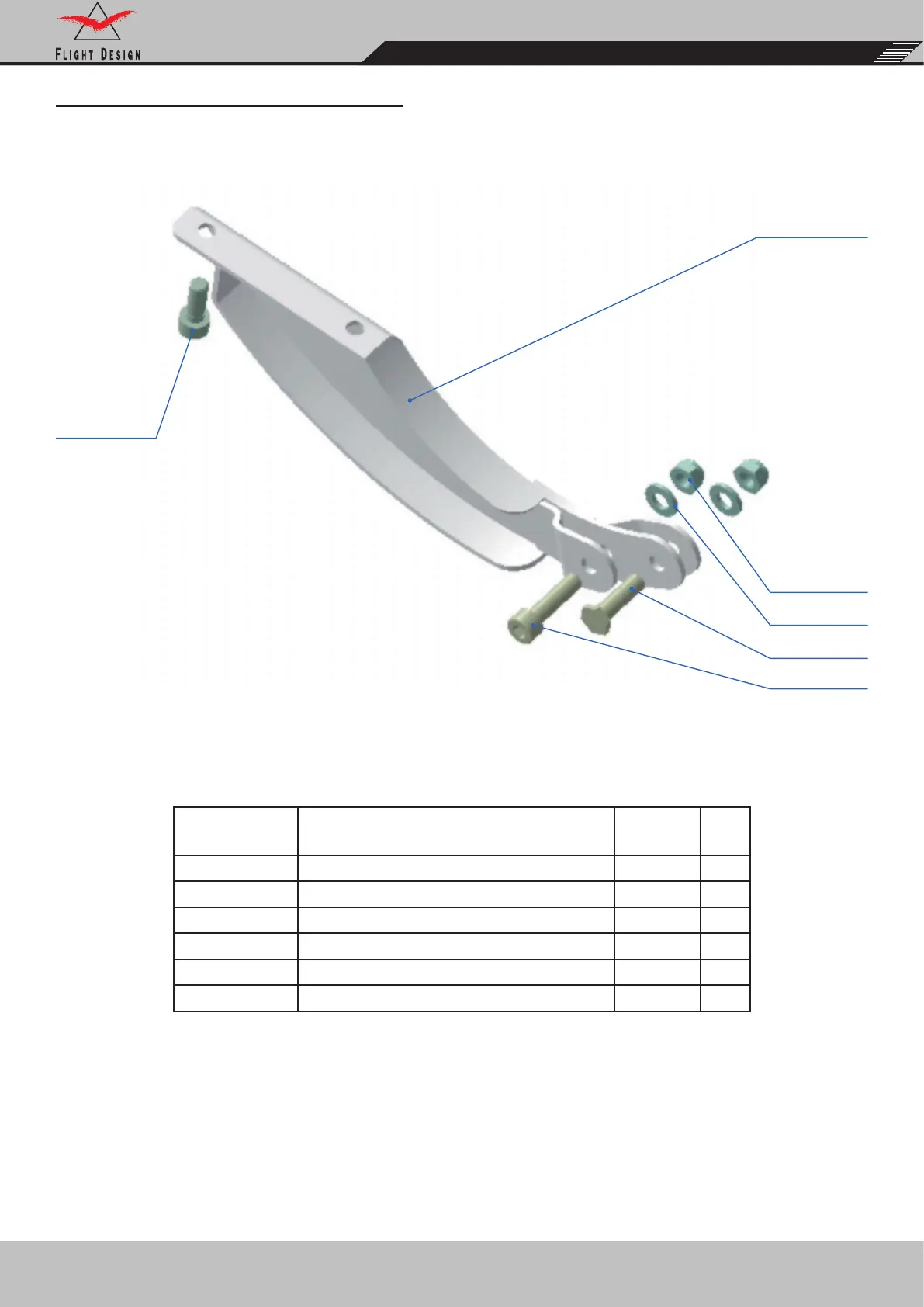

KA2010030R WING PIVOT NO3, RIGHT

KA2010030R

KA2020005

C9996286K

C9996286P

C9996334

C9996504
