FLIGHT DESIGN CT2K - KA4020400 Main Strut Fairing

To Next Page

To Previous Page

Chapter 4: Landing Gear

118

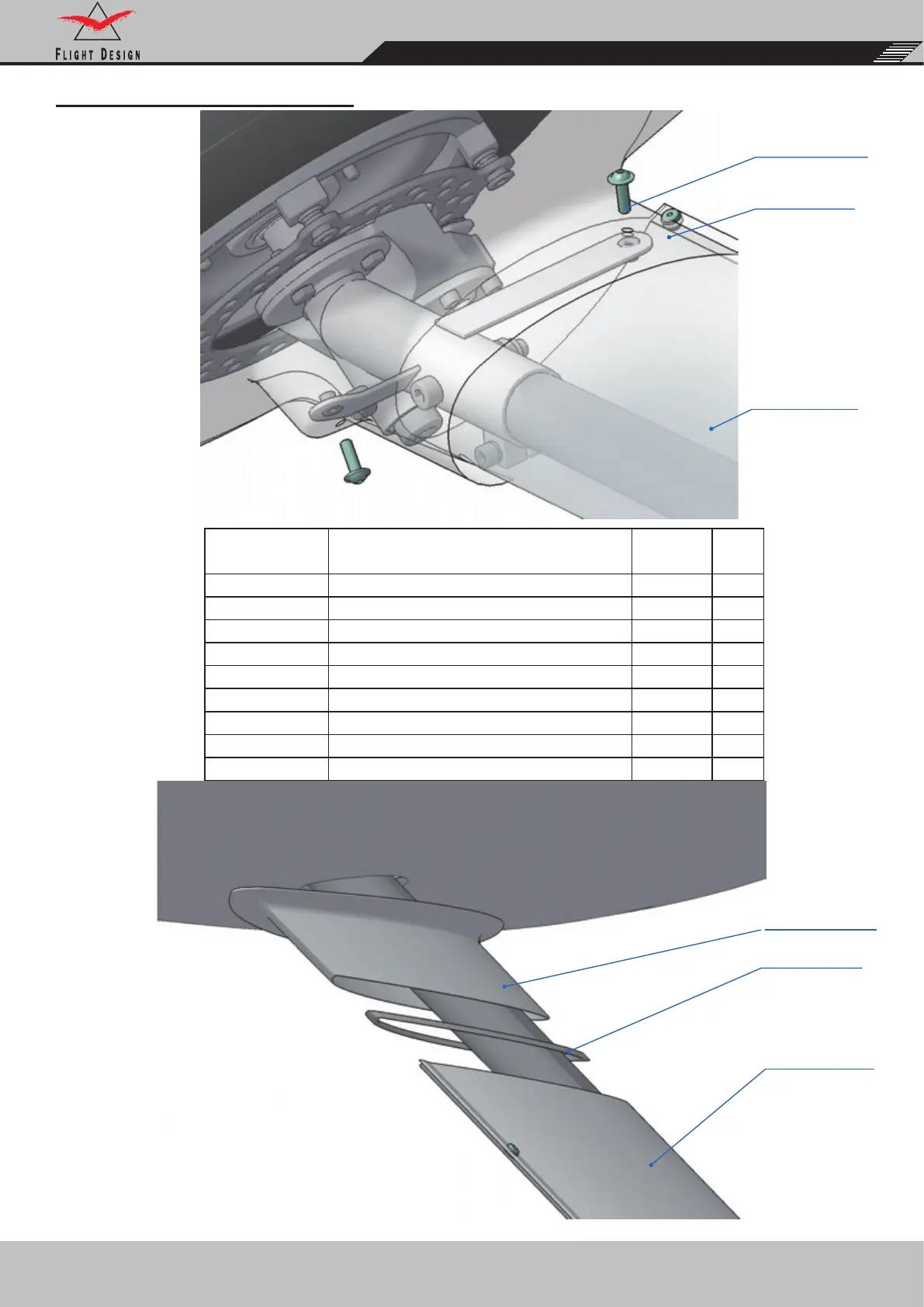

KA4020400 MAIN STRUT FAIRING

Part Number Description

Q-ty per

ASSY

Unit

KA4020400L Main strut fairing, left 1 pcs

KA4020400R Main strut fairing, right 1 pcs

KU4020400L Main strut fairing, left, reinforced 1 pcs

KU4020400R Main strut fairing, right, reinforced 1 pcs

KA4020450 Fairing, L,R 2 pcs

С9993189T Door seal 0.45 m

C9996161 Screw ISO 7380 M5x12 6 pcs

C9996562 Washer DIN 9021-4.3 mm VZ 8 pcs

C9996650 Stainl. steel rivet A2 4x7.5 4 pcs

C9996161

С9993189T

C9996562

C9996650

KA4020400L

KA4020400R

KU4020400L

KU4020400R

KA4020400L

KA4020400R

KU4020400L

KU4020400R

KA4020450L

KA4020450R
