Chapter 1: Fuselage

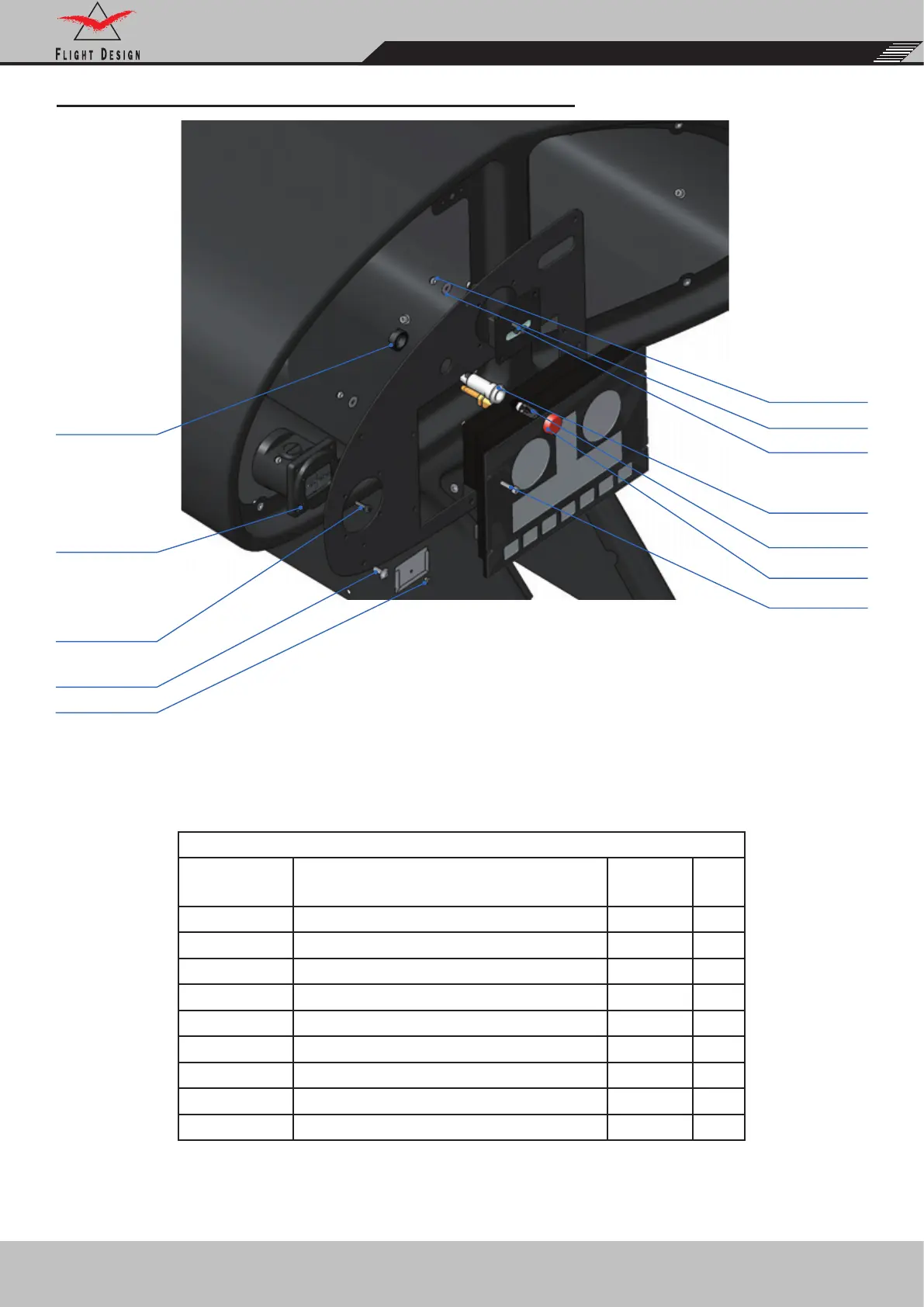

KS1081100 PANEL LEFT SECTION, KS (ENGLISH VERSIION)

Panel Left Section, KS (English Version)

Part

Number

Description

Q-ty per

ASSY

Unit

C9996025 Bolt DIN 912 M4x16-8.8 4 pcs

C9996161 Screw ISO 7380 M5x12 5 pcs

C9996289R Machine screw M4x20, alu 8 pcs

C9996332 Self-locking nut DIN 985-M4, regular 4 pcs

C9996562 Washer DIN 9021-4.3 mm VZ 4 pcs

C9996608 Stainl.steel rivet A2 3.2x6 1 pcs

C9997169 Lamp E10 1 pcs

C9997175 Lamp holder red 1 pcs

C9997781G Compass 1 pcs

C9996025

C9997169

C9997175

C9997781G

C9996608

C9996161

C9996562

C9996332

C9996289R

C9997175
