FLIGHT DESIGN CT2K

To Next Page

To Previous Page

Chapter 4: Landing Gear

110

C9997206W

Part Number Description

Q-ty per

ASSY

Unit

C9996059 Bolt DIN 912 M6x30-8.8 6 pcs

C9996334 Self-locking nut DIN 985-M6, regular 6 pcs

C9996565 Washer DIN 9021-6.4mm VZ 6 pcs

C9997206W Tire 4.00-6’’ 6PR B11 TT, SAVAtech, Slovenien 1 pcs

C9997205H Tube 3,5 - 6” Stright Valve 1 pcs

C9997204U Front wheel 6”x 80 mm - AXLE D.15 1 set

C9997205H

C9997204U

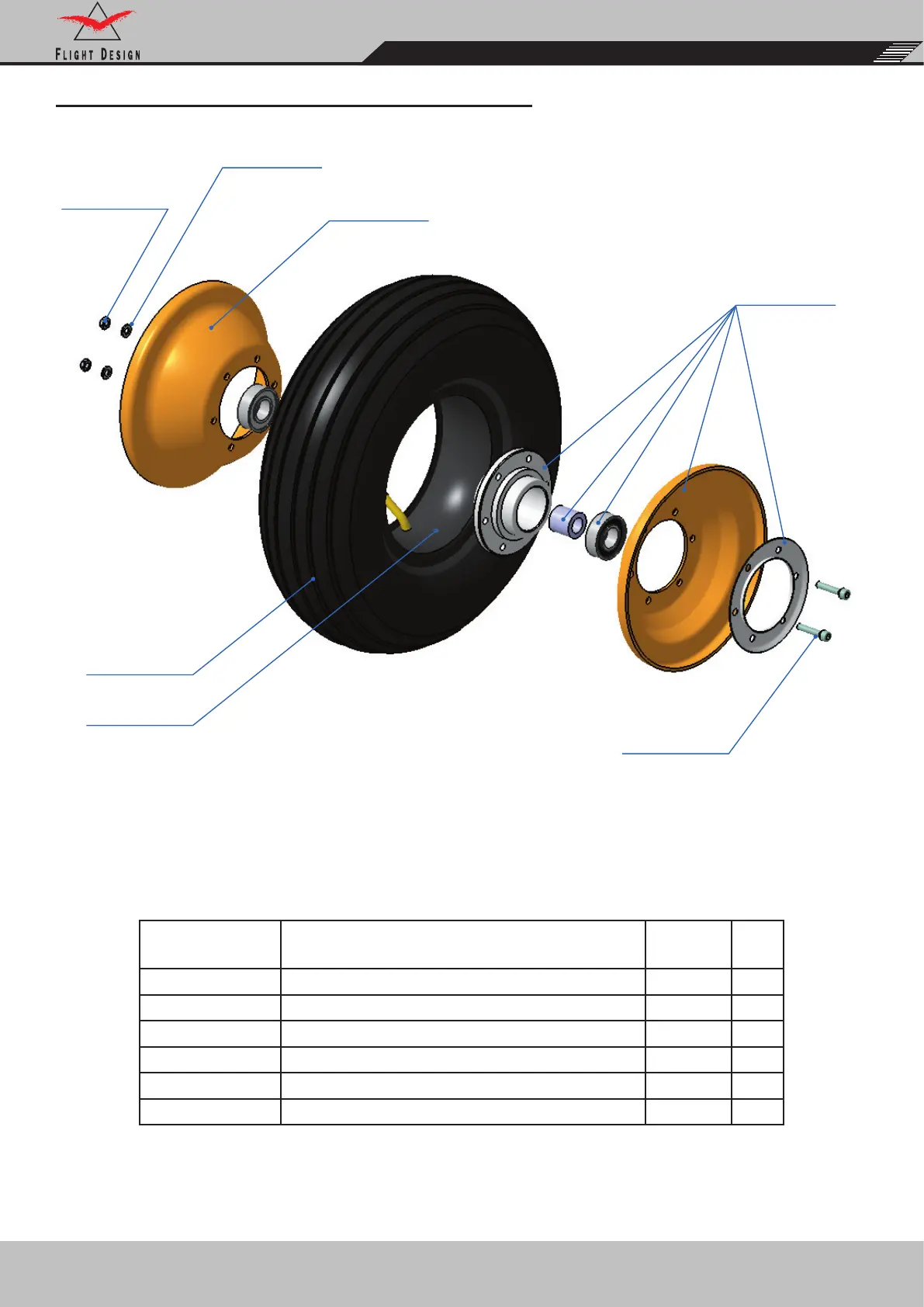

KA4010200-04 - NOSE WHEEL MOUNTING, TUNDRA_2

C9996059

C9996334

C9996565
