FLIGHT DESIGN CT2K

To Next Page

To Previous Page

Chapter 5: Power Plant

137

Part

Number

Description

Q-ty per

ASSY

Unit

KB5030500 Dust ﬁlter box 1 pcs

C9993189T Door seal 1 m

C9996135 Bolt DIN 7984-M5x16-8.8 4 pcs

C9996563 Washer DIN 9021-5.3mm VZ 4 pcs

C9997770 Air ﬁlter C2039 1 pcs

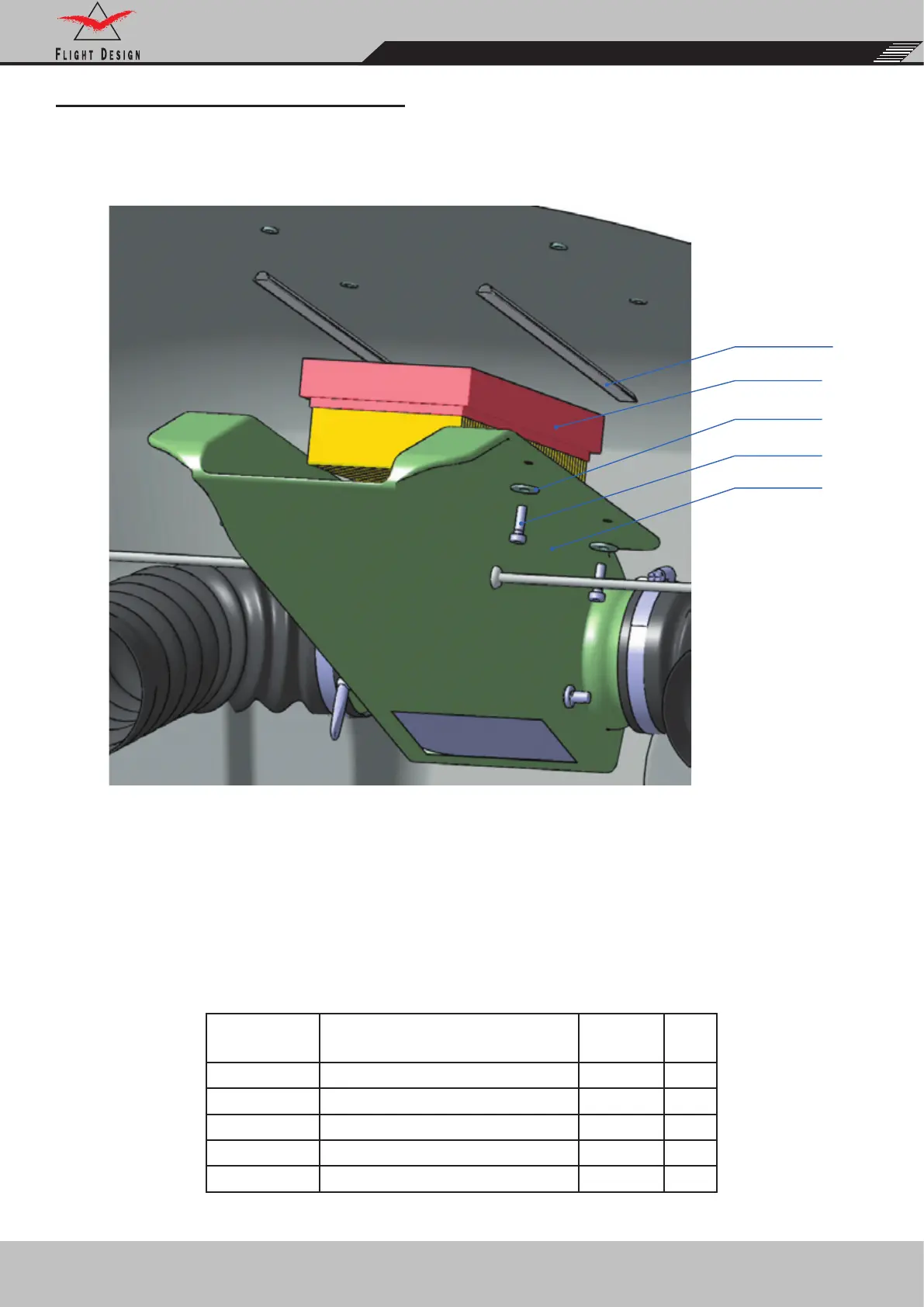

AIR FILTER MOUNTING, GERMAN VERSION

C9996135

C9996563

C9997770

C9993189T

KB5030500
