FLIGHT DESIGN CT2K

To Next Page

To Previous Page

Chapter 6: Flight Control

227

C9996025

C9996562

KB6020701

Part Number Description

Q-ty per

ASSY

Unit

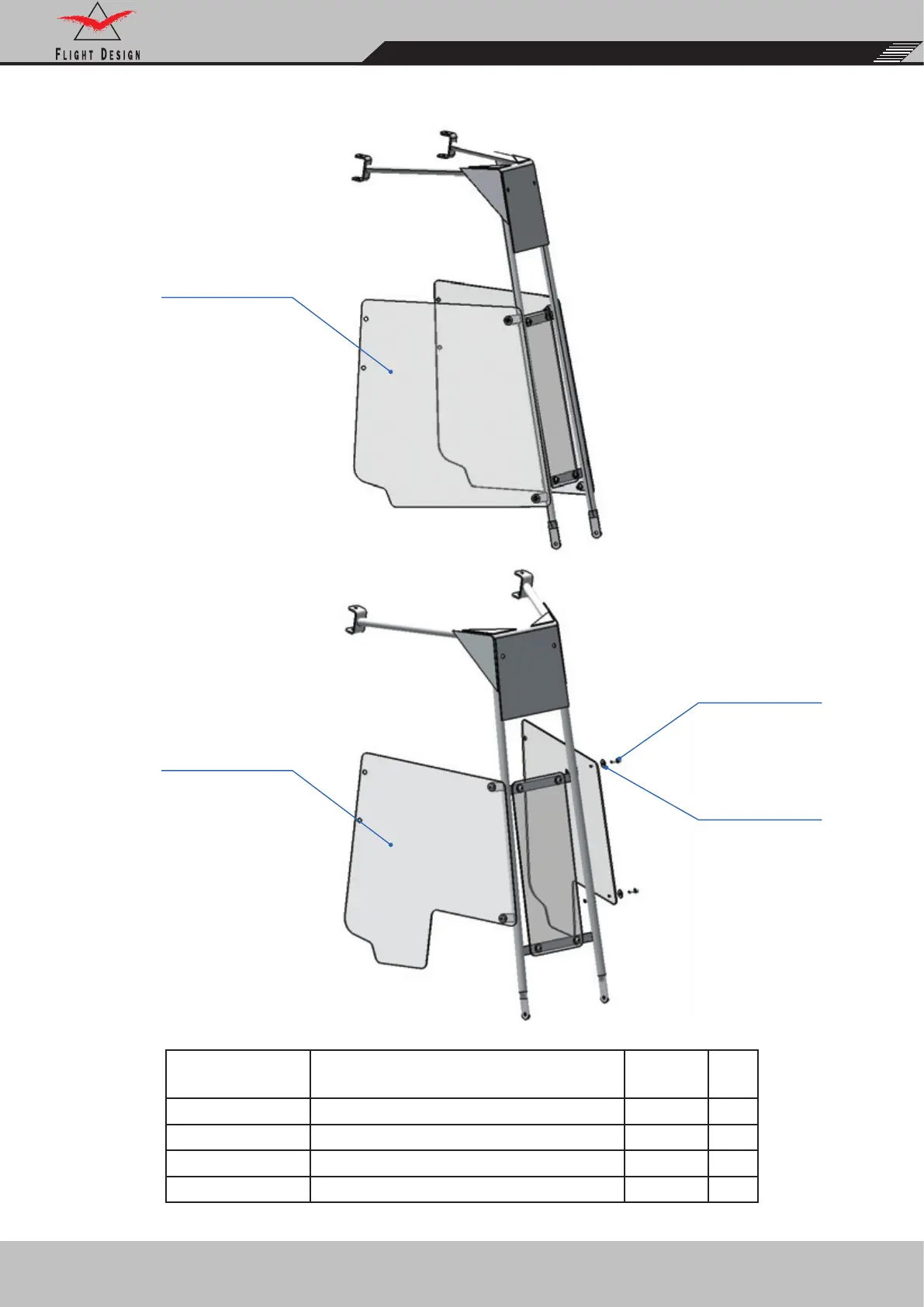

KB6020701 Plate, Side 2 pcs

KB6020701-01 Plate, Side 2 pcs

C9996025 Bolt DIN 912 M4x16-8.8 8 pcs

C9996562 Washer DIN 9021-4.3 mm VZ 12 pcs

KB6020701-01
