Fuji Xerox DocuPrint CM405 df

Maintenance 415

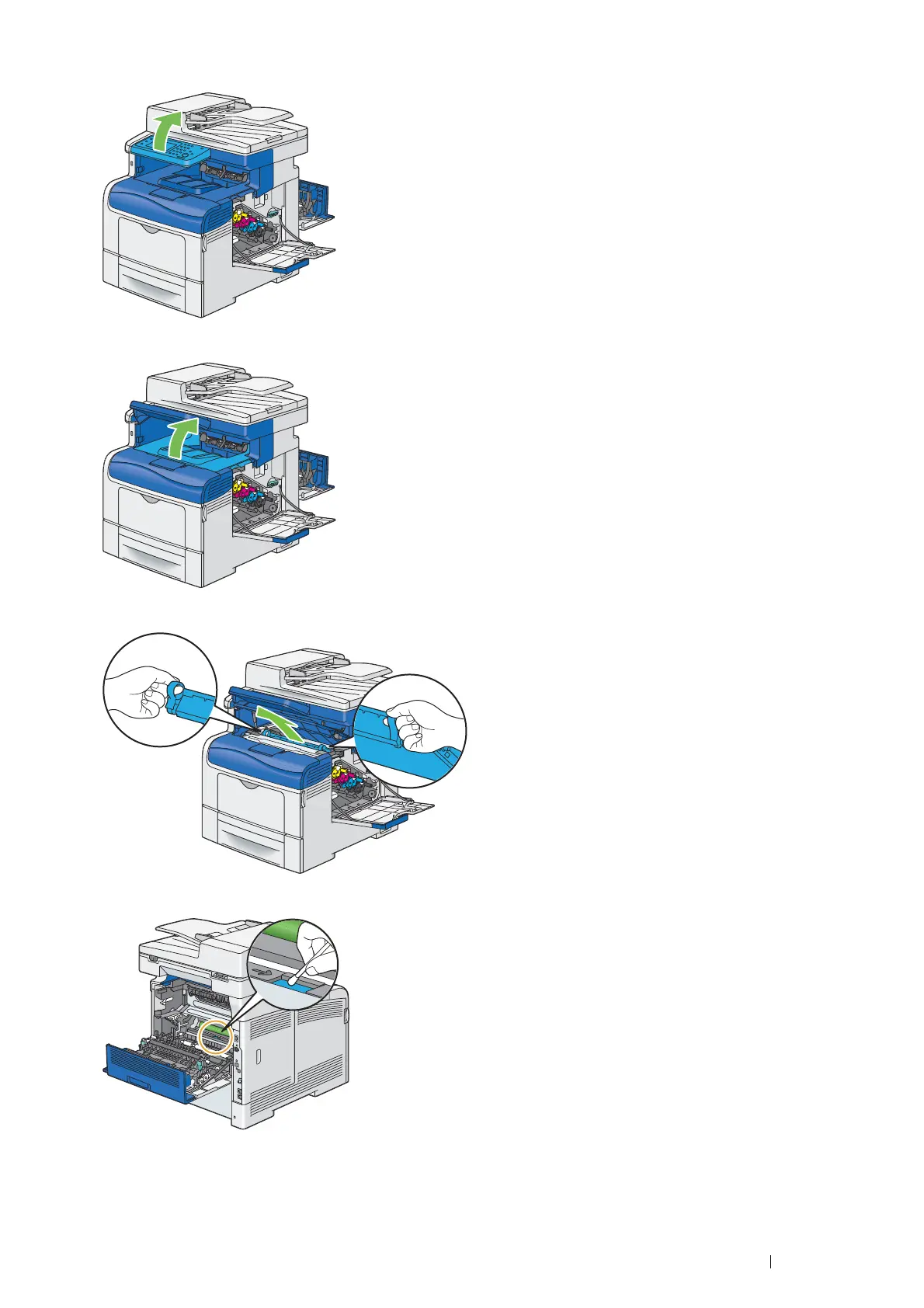

7 Lift the operator panel.
8 Open the top cover.
9 Put your fingers through the loops on both sides of the belt unit, and then pull it out.
10 At the rear of inside the printer, clean the CTD sensor with a clean dry cotton swab.
