50 Basic Operation

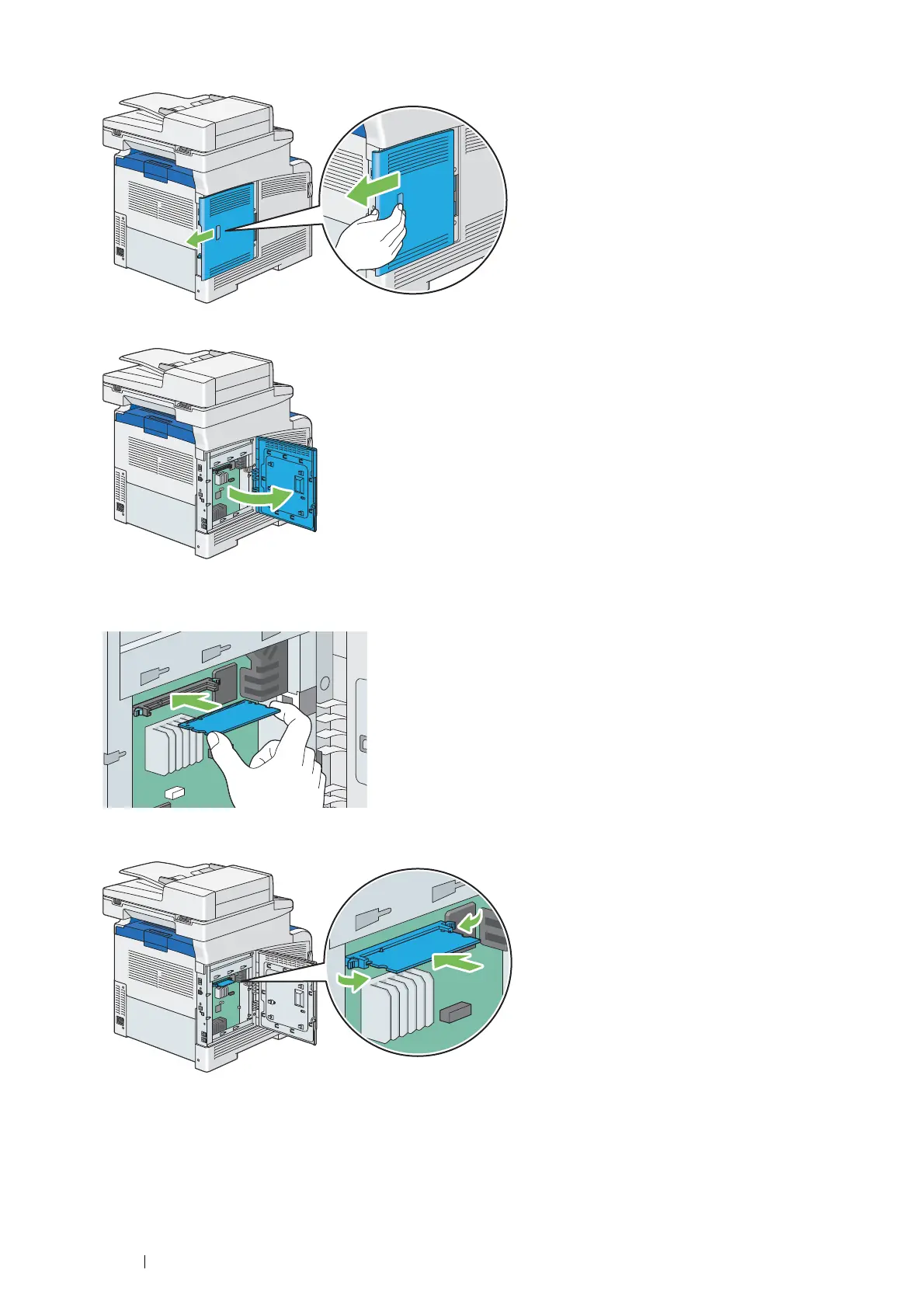

3 Slide the control board cover towards the rear of the printer.
4 Open the control board cover completely.
5 Hold the edge of the memory module with the labeled side down and the connector toward the control board,
and then insert it into the slot.
6 Push the memory module firmly into the slot.
NOTE:
• Ensure that the memory module is firmly fixed in the slot and does not move easily.
To Next Page
