Removing an FJBU

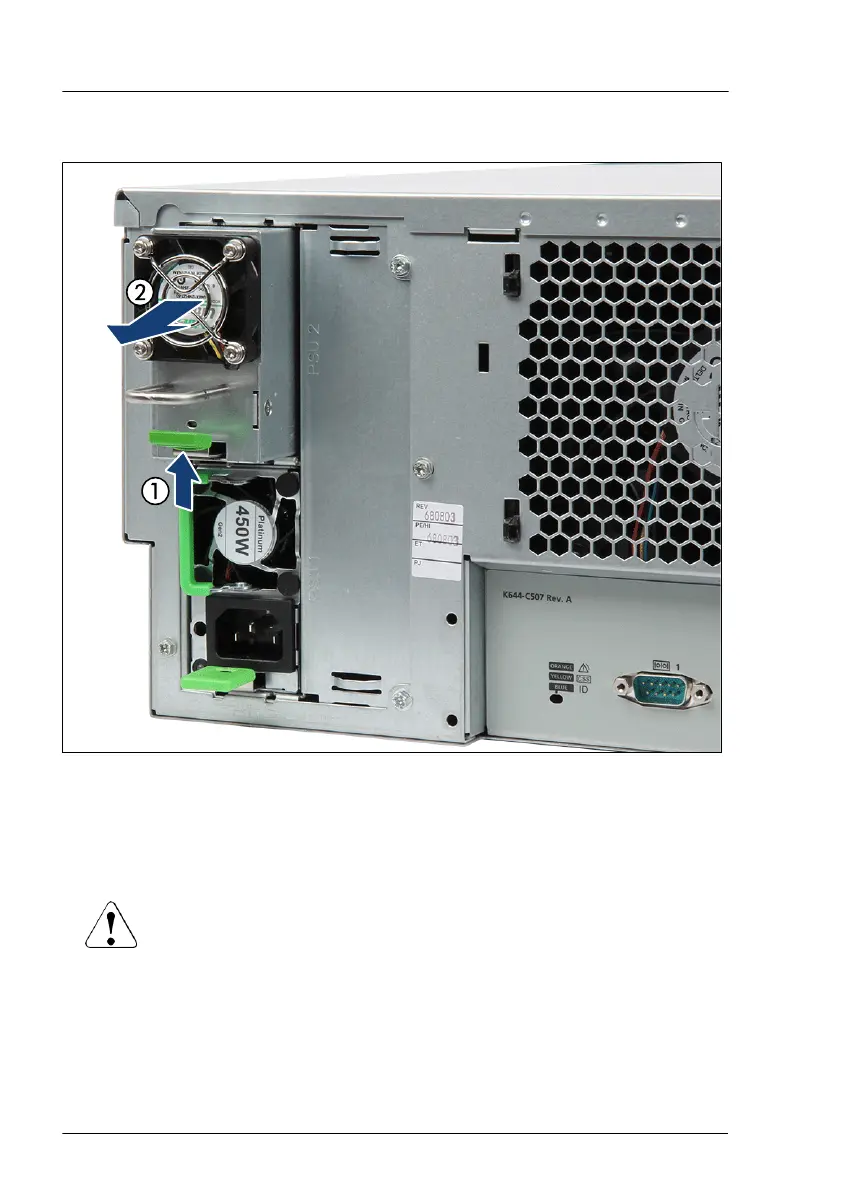

Figure 80: Removing an FJBU
▶
Press in on the green locking latch (1).
▶
While keeping the green locking latch pressed, pull the FJBU out of its bay
(2).
CAUTION
▶
Never leave the bay for the FJBU empty.
▶
Install a new FJBU or install the dummy cover.
Installing the dummy cover
▶
Install the dummy cover
, see
"Installing the dummy cover" on page 152.
Power supply unit (PSU)
162 Upgrade and Maintenance Manual TX1330 M4
