4.4.3.4 Removing the HDD bay cover

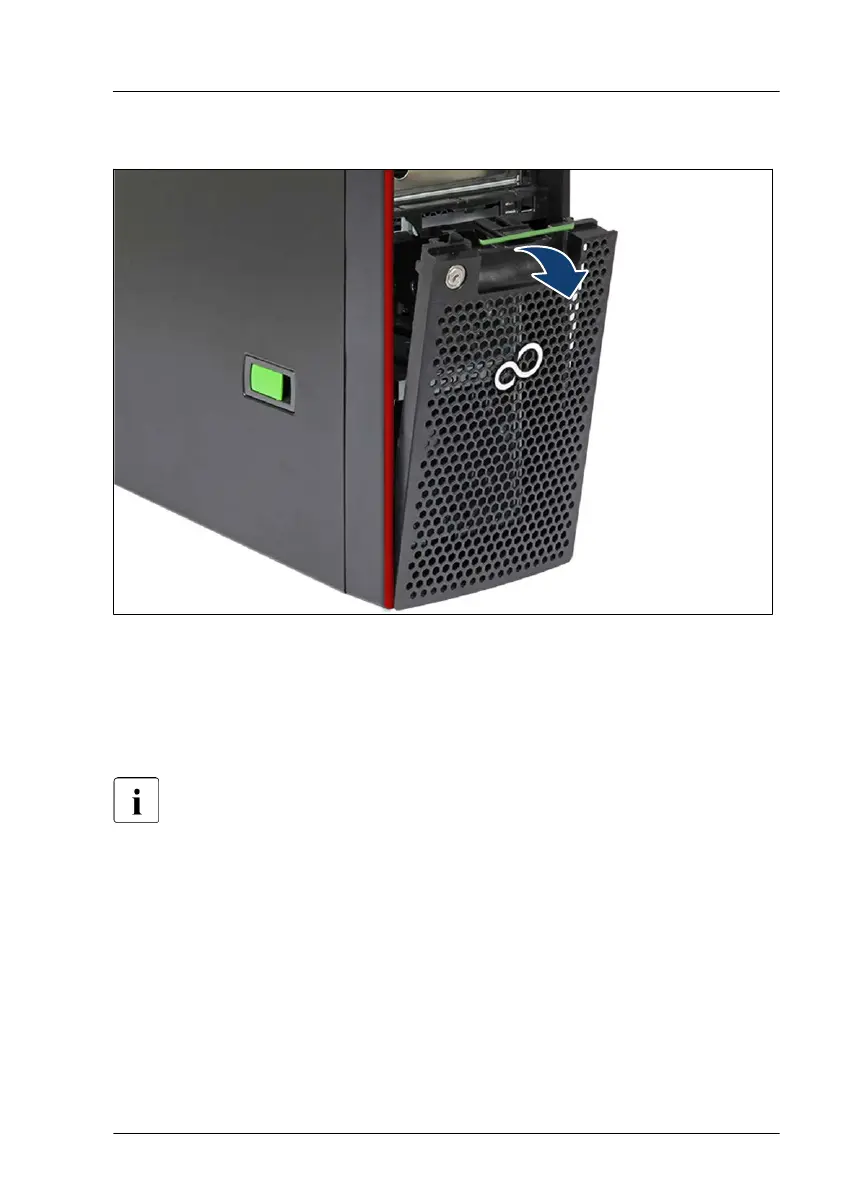

Figure 17: Removing the HDD bay cover
▶
Fold out the HDD bay cover in the direction of the arrow and remove it.
4.4.3.5
Removing the front cover
You remove the front cover when:
–
Installing/removing accessible drives or HDD extension boxes
–
Converting a floorstand model to a rack model
Basic hardware procedures
TX1330 M4 Upgrade and Maintenance Manual 63
