4.9.4 Accessible drive covers
4.9.4.1 Removing accessible drive covers
Removing accessible drive covers is illustrated by the example of the
floorstand model. In case of the rack front cover, the procedure is
identical.

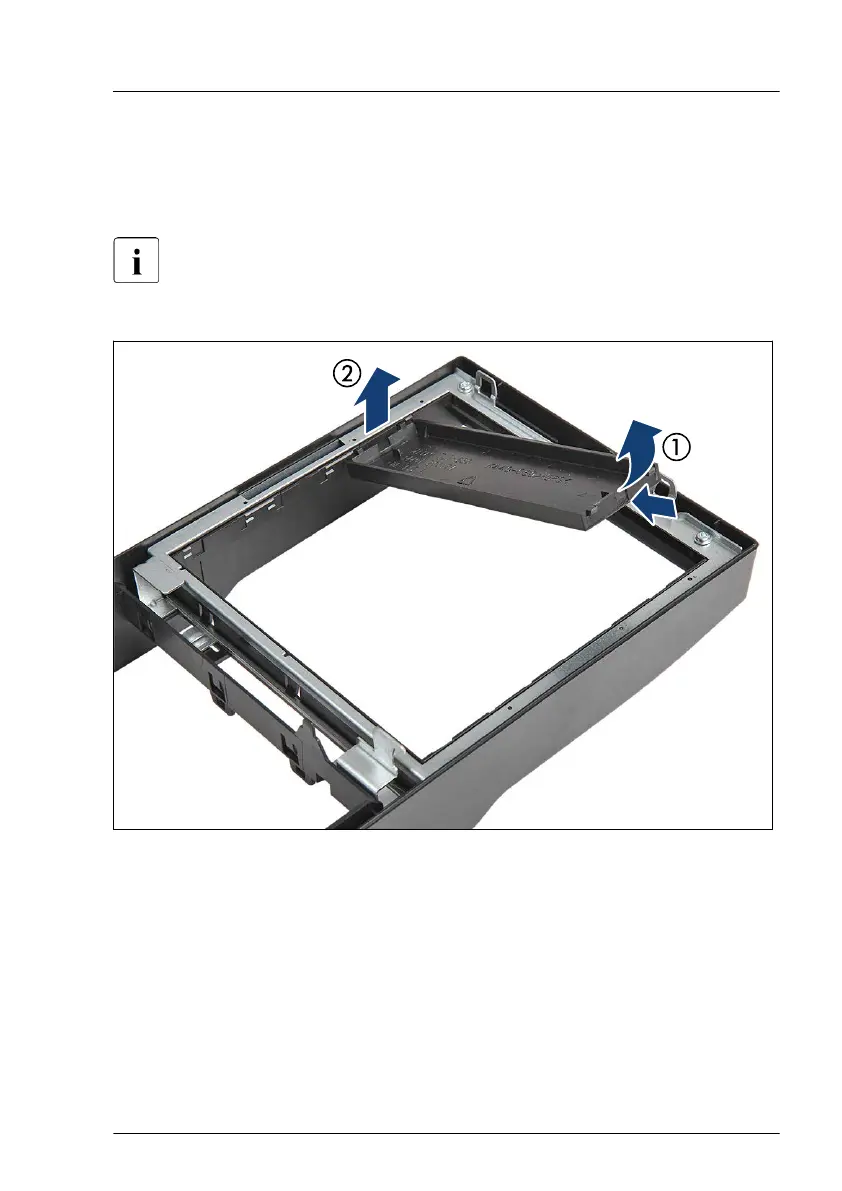

Figure 51: Removing an accessible drive cover
▶
Turn the front cover face down.
▶
Press in on the lugs on either side of the drive cover
.
▶
Fold up (1) and remove the accessible drive cover (2).
Basic hardware procedures
TX1330 M4 Upgrade and Maintenance Manual 95
