7.7 SAS expander board
7.7.1 Installing the SAS expander board
Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
Preliminary steps
▶
"Suspending BitLocker functionality" on page 99
.
▶
"Shutting down the server" on page 47.
▶
"Disconnecting the power cord" on page 48.
▶
"Getting access to the component" on page 50.
Installing the SAS expander board

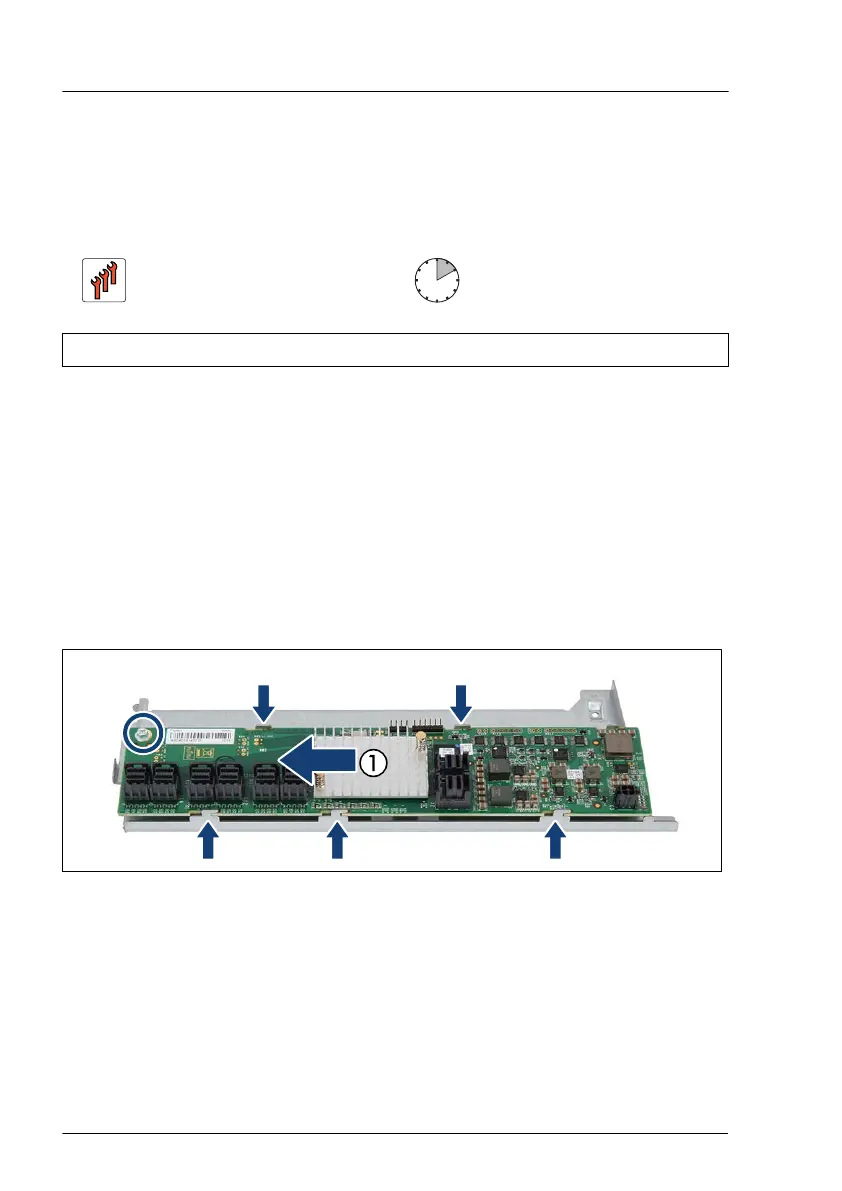

Figure 163: Installing the SAS expander board
▶
Position the SAS expander board on the SAS expander board holder. Notice
the recesses and hooks (see arrows).
▶
Push the SAS expander board in the direction of the arrow (1).
▶
Fasten the SAS expander board with one screw M3 x 4.5 mm (see circle).
Hard disk drive (HDD) / solid state disk (SSD)
268 Upgrade and Maintenance Manual TX1330 M4
