9.3 Handling slot brackets
9.3.1 Installing slot brackets
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
Use the low profile bracket perforated for relevant controllers.

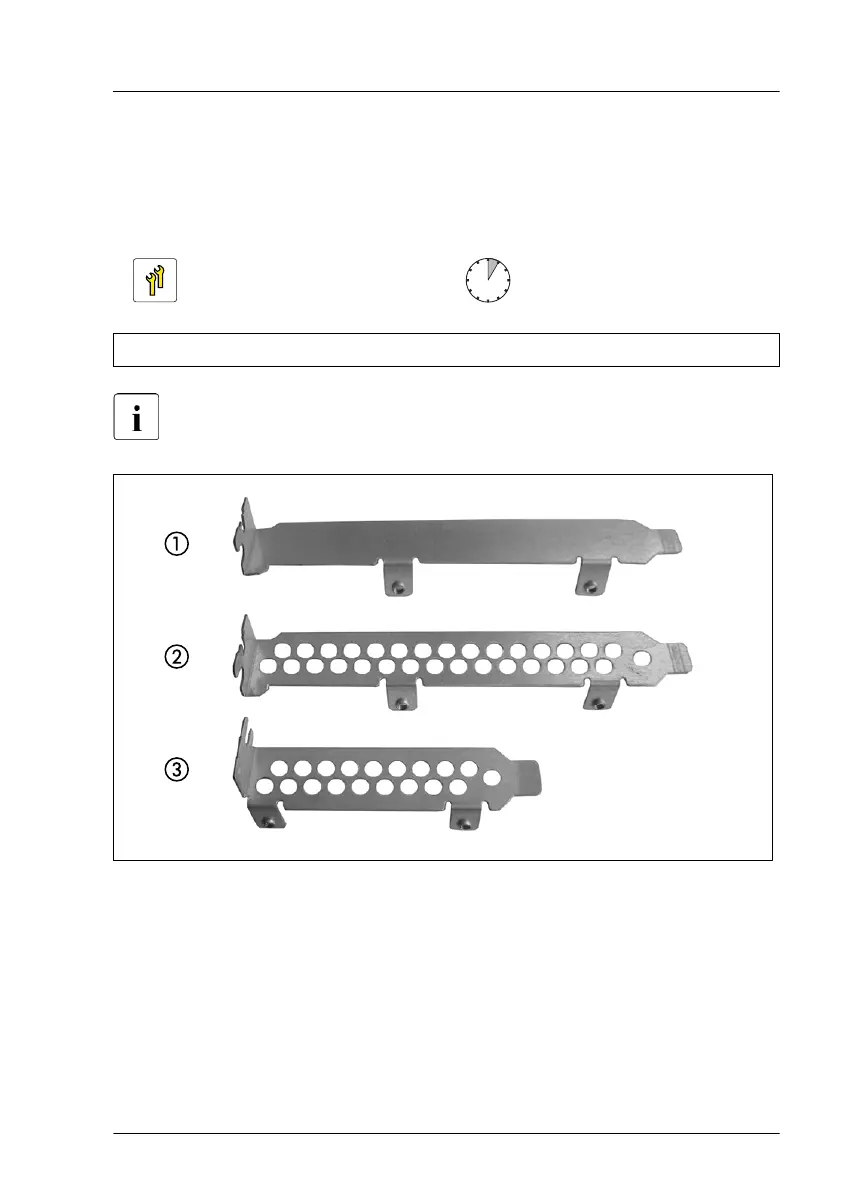

Figure 178: Perforated and non-perforated slot brackets
1 Full height bracket non-perforated
2
Full height bracket perforated
3
Low profile bracket perforated
Installing a slot bracket
▶
Place the controller on the mounting tabs on the slot bracket.
▶
Fasten the slot bracket to the controller with two screws.
Expansion cards and backup units
TX1330 M4 Upgrade and Maintenance Manual 289
