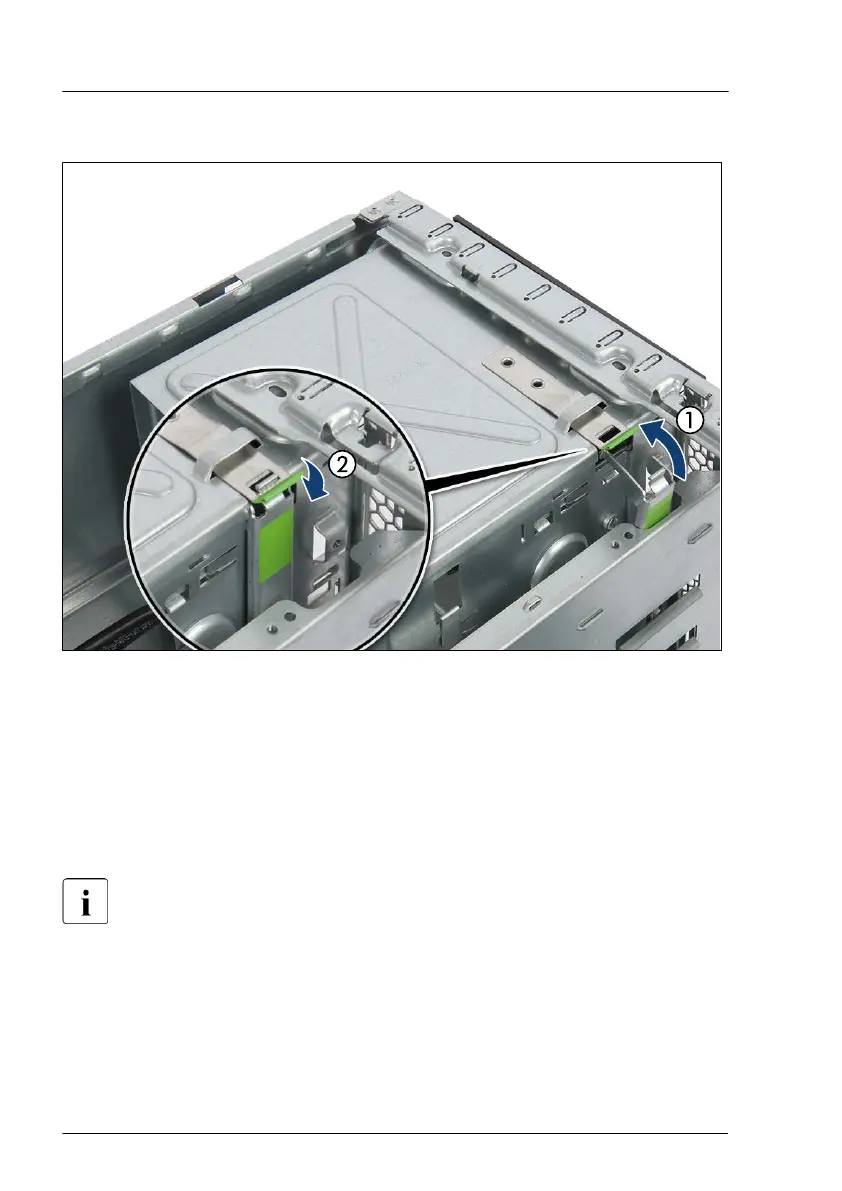

Figure 48: Closing the accessible drive locking bar (rack model)
▶
Fold in the locking bar (1) until it locks in place (2).
4.9.3
Accessible drive filler covers
4.9.3.1
Removing accessible drive filler covers
Removing accessible drive filler covers is illustrated by the example of
the rack model. In case of the floorstand model front cover, the
procedure is identical.
Basic hardware procedures
92 Upgrade and Maintenance Manual TX1330 M4
