17.3 Onboard settings
CPU
Slot 2
Slot 1
Slot 4
Slot 3
RCVR
PWD CLR
1 2
external connectors
LAN 1
Management
LAN / USB 2.0
LAN 2 /
USB 3.1 Gen 2
VGA
Shared LAN 1 /
USB 2.0
PWR1
iRMC
S5
Battery
TPM
IntrSATA ODD
FAN2
FAN3
HDD LED
Intel
i210
Intel
i210
Indicate
SATA
0-3
CSS
FAN1
M.2
SSD1
M.2
SSD2

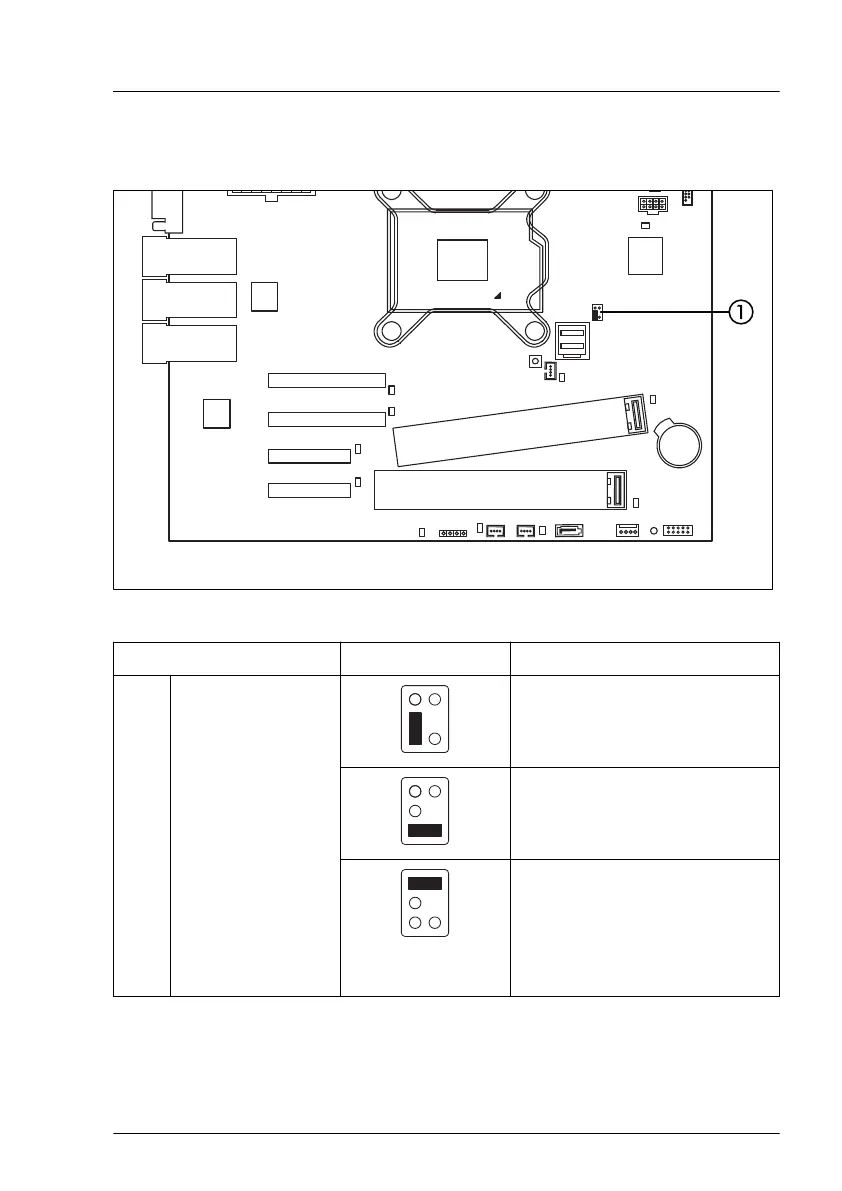

Figure 341: Onboard settings on system board D3673
Setting Status Description
1
PWD CLR / BIOS-
RCVR
Default (place to keep the
jumper)
Recovery BIOS enabled
Password Clear enabled
This jumper setting will
permanently delete the
current BIOS password and
apply default BIOS settings.
Appendix A
TX1330 M4 Upgrade and Maintenance Manual 515
