Fujitsu PRIMERGY TX1330 M4

7.5 2.5-inch HDD/SSD configurations
7.5.1 Overview of configurations
7.5.1.1
Configurations with up to eight HDD/SSD modules

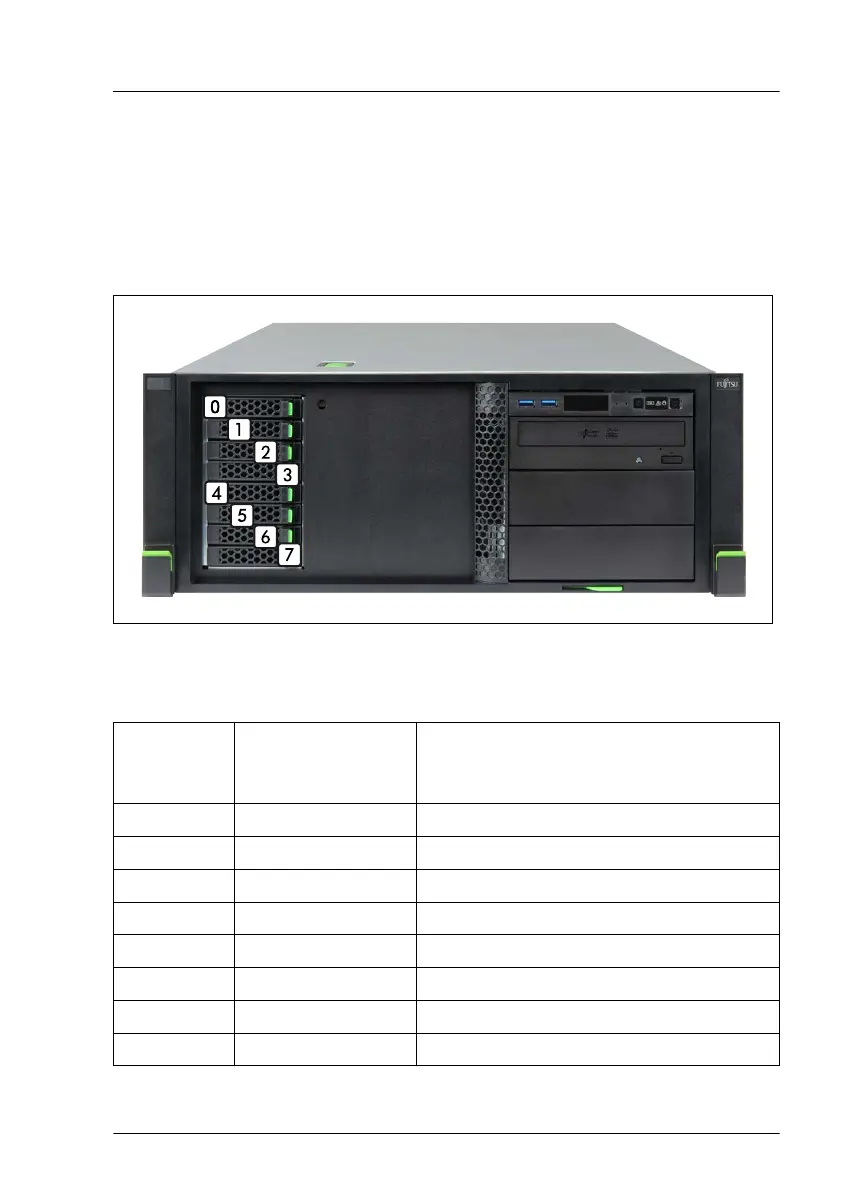

Figure 119: Configuration with up to eight 2.5-inch HDDs/SSDs
With one SAS controller
Position Logical drive
number
ServerView RAID Manager display
name
(Enclosure number: Port number)
[0] 0 Vendor Product (0)
[1] 1 Vendor Product (1)
[2] 2 Vendor Product (2)
[3] 3 Vendor Product (3)
[4] 4 Vendor Product (4)
[5] 5 Vendor Product (5)
[6] 6 Vendor Product (6)
[7] 7 Vendor Product (7)
Hard disk drive (HDD) / solid state disk (SSD)
