14.6.3 Removing an M.2 SSD
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: – Phillips PH1 / (+) No. 1 screw driver
–
Hexagon screw driver (for moving the screw to another hexagon
stand-of
f)
Preliminary steps
▶
"Shutting down the server" on page
47
.
▶
"Disconnecting the power cord" on page 48.
▶
"Getting access to the component" on page 50.
▶
Remove the system fan module, see "Removing the system fan module" on
page 82.
▶
If applicable, remove the SAS expander board holder without disconnecting
cables, see "Removing the SAS expander board holder" on page 273.
Position the SAS expander board holder on the HDD cages to get more
space.
▶
If applicable, "Removing an expansion card" on page 305.
Removing the M.2 SSD

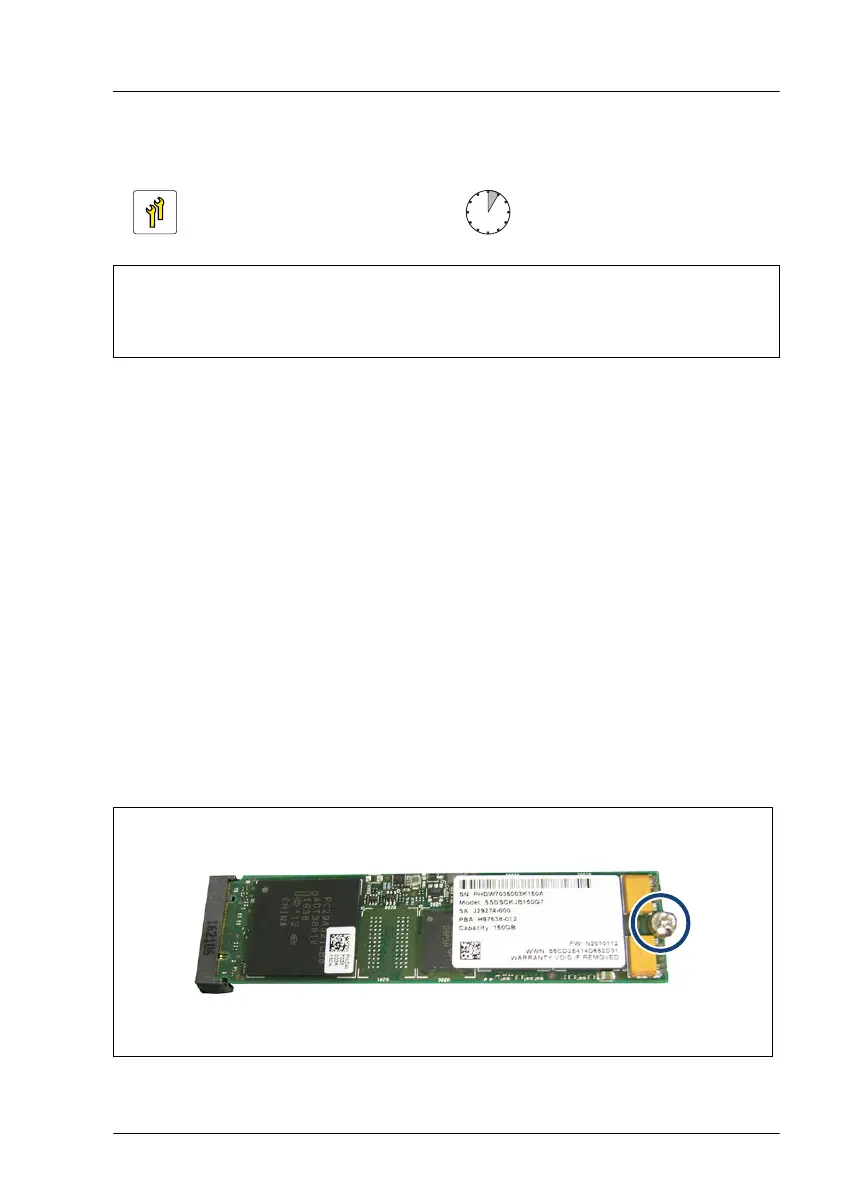

Figure 288: Removing the M.2 SSD (A)
System board and components
TX1330 M4 Upgrade and Maintenance Manual 437
