17.2.3 Server rear
17.2.3.1 Connectors on the server rear

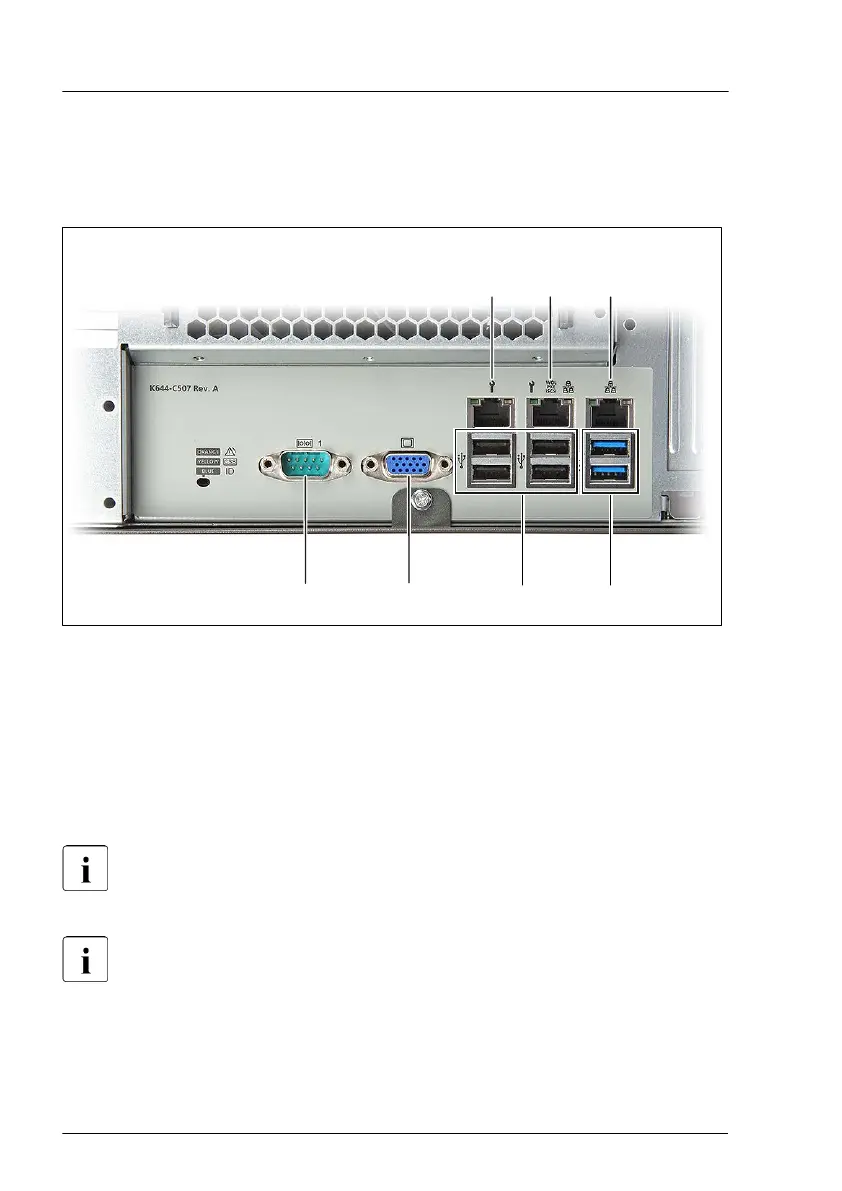

Figure 336: Connectors on the server rear
1 Management LAN connector for iRMC
server management function
2
Shared LAN connector (LAN1)
3
Standard LAN connector (LAN2)
4
USB 3.1 Gen 2 connectors (2x)
5 USB 2.0 connectors (4x)
6 Video connector (VGA)
7 Serial connector COM1*
* The serial connector can be used as the standard interface or for
communication with iRMC.
Depending on the BIOS settings, the shared LAN connector may also
be used as a management LAN connector. For more information, see
the corresponding BIOS Setup Utility reference manual.
Some of the devices connected require special software (e.g. drivers)
(see documentation for the connected device).
Appendix A
506 Upgrade and Maintenance Manual TX1330 M4
