4.4.2.3 Removing the top cover

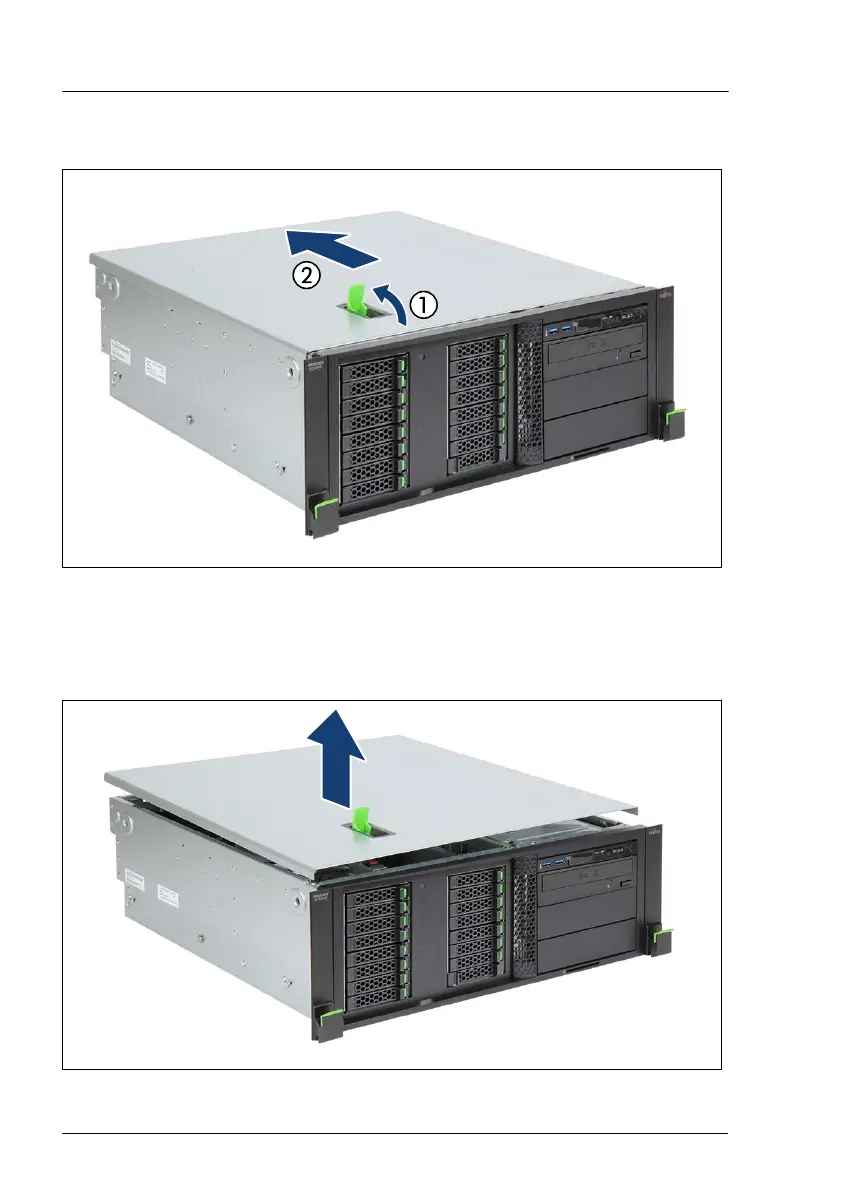

Figure 6: Removing the top cover (rack server)
▶
Open the locking lever (1). This will slide the top cover back disengaging the
locking mechanism (2).
Figure 7: Removing the top cover (rack server)
Basic hardware procedures
54 Upgrade and Maintenance Manual TX1330 M4
