Insert the HDD bay cover with the lower side into the front cover (1).
▶
Fold in the HDD bay cover until it locks in place (2).
4.5.3.3
Installing the accessible drive bay cover

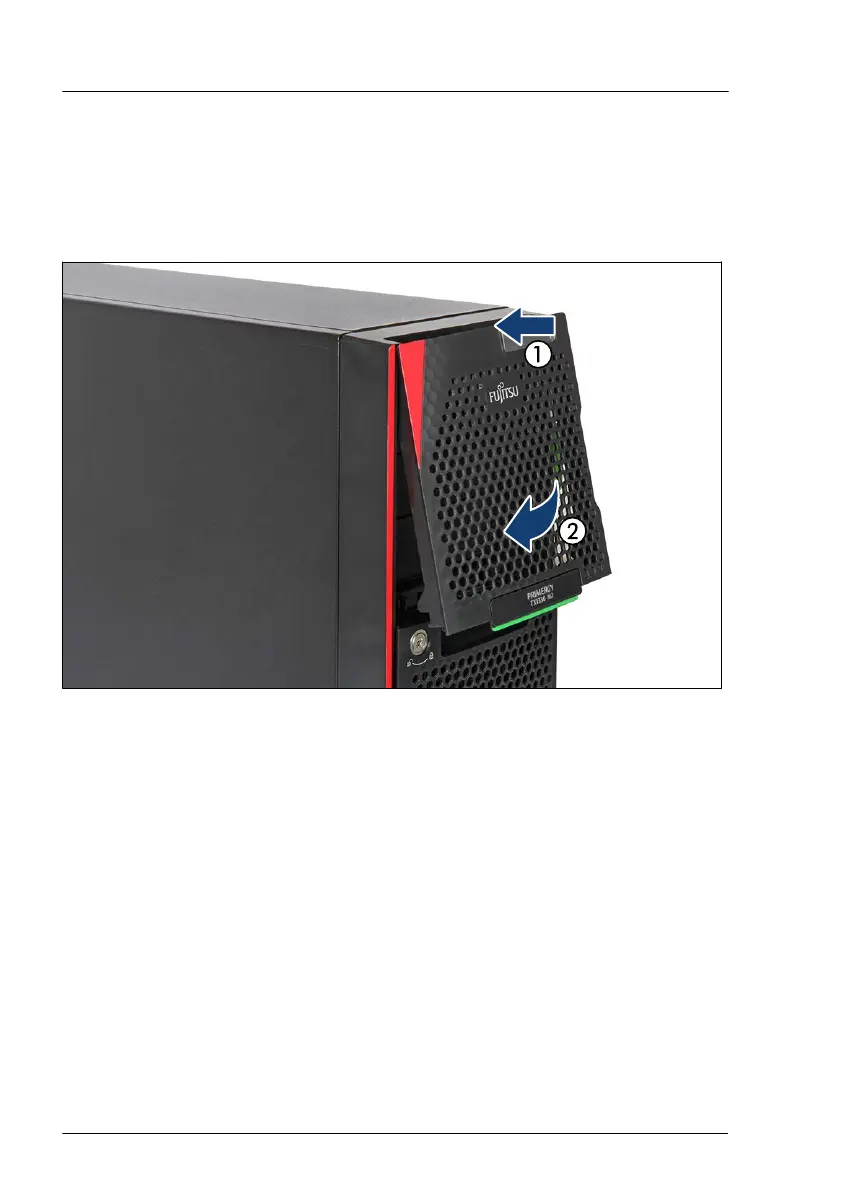

Figure 31: Installing the accessible drive bay cover
▶
Insert the accessible drive bay cover to the upper side of the front cover (1).
▶
Fold down the accessible drive bay cover until it locks in place (2).
Basic hardware procedures
76 Upgrade and Maintenance Manual TX1330 M4
