17.1.3.2 Server with hot-plug PSUs

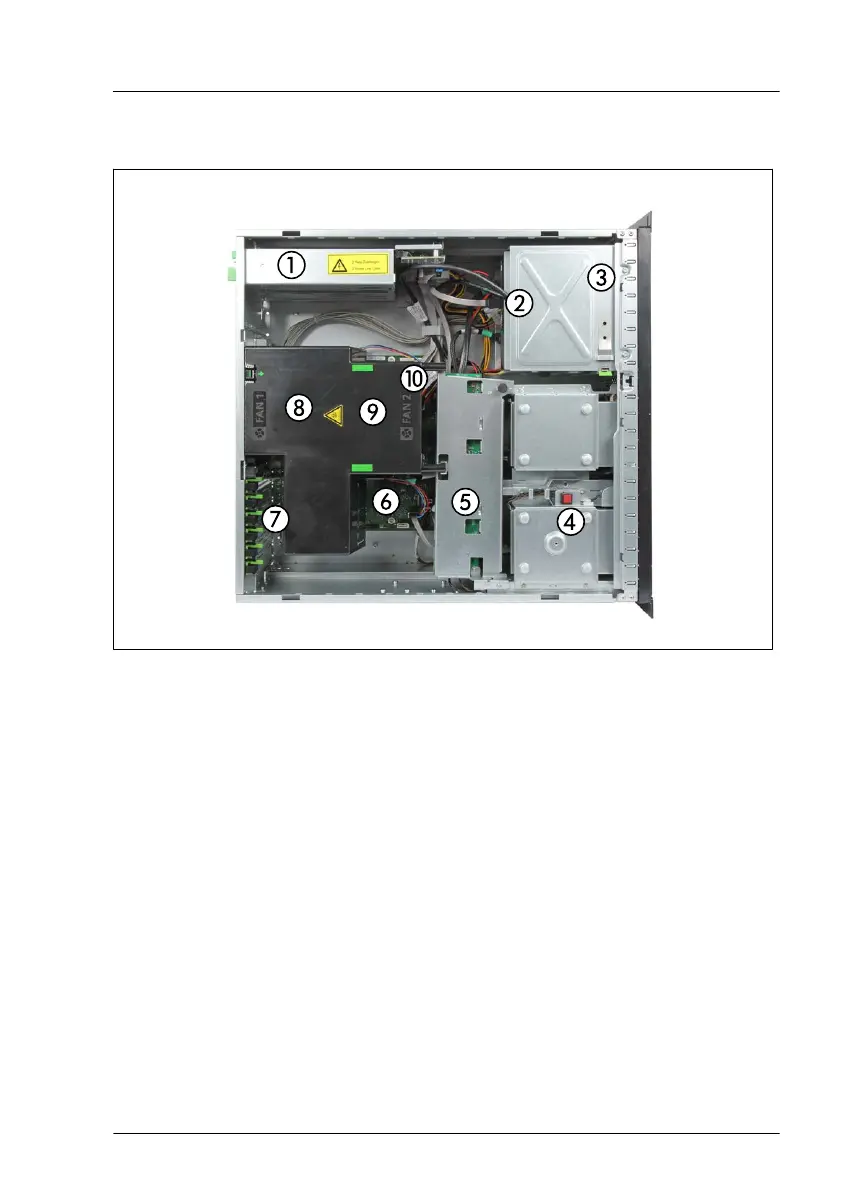

Figure 329: Interior (example: 2.5-inch HDD model, redundant power supply)
1 PSU bays
2 Accessible drive bay
3
Front panel module bay
4 HDD/SSD bays
5 Expander board
6 System board D3673
7 Expansion card slots
8 Redundant system fan
9 CPU/heat sink
10 Memory modules
