Fujitsu PRIMERGY TX1330 M4 - Removing the Side Cover

4.4.3.2 Removing the side cover

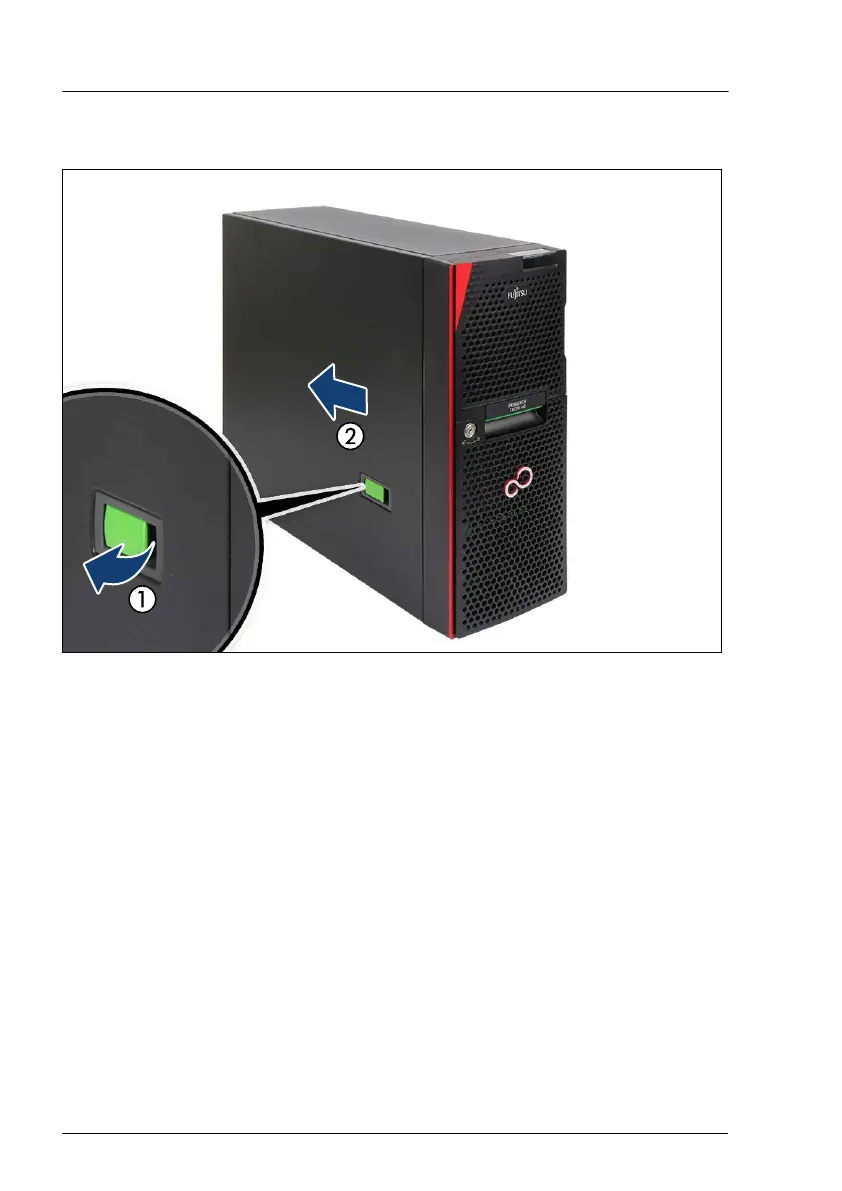

Figure 14: Removing the side cover (floorstand model)
▶
Pull on the locking lever (1). This will slide the side cover back disengaging
the locking mechanism.
▶
Remove the side cover (2) and set aside for later use.
Basic hardware procedures
60 Upgrade and Maintenance Manual TX1330 M4
