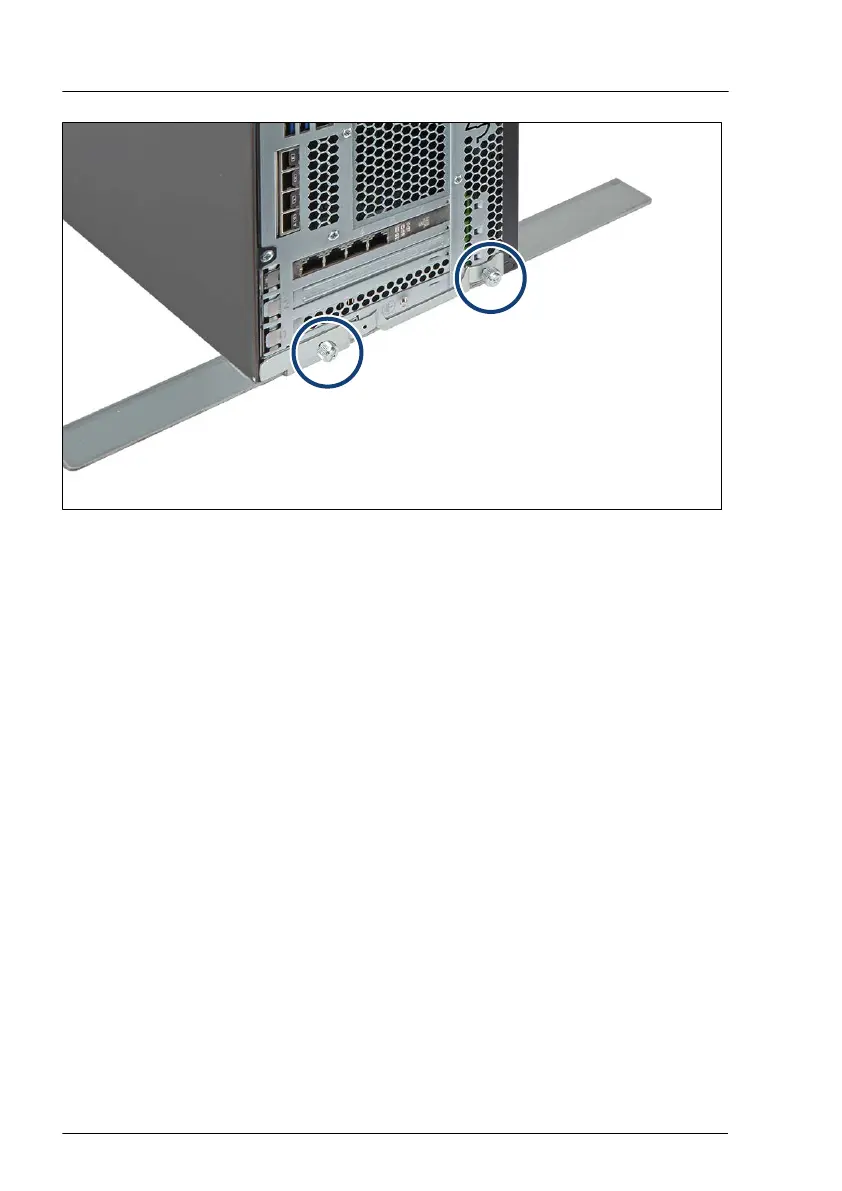

Figure 54: Installing the anti-tilt bracket (B)
▶
Fasten the anti-tilt bracket on the rear of the server with two knurled thumb
screws.
4.10.2 Removing the anti-tilt bracket
▶
Loosen the two knurled thumb screws on the anti-tilt bracket (see
Figure 54
).
▶
Remove the anti-tilt bracket from the rear of the server.
