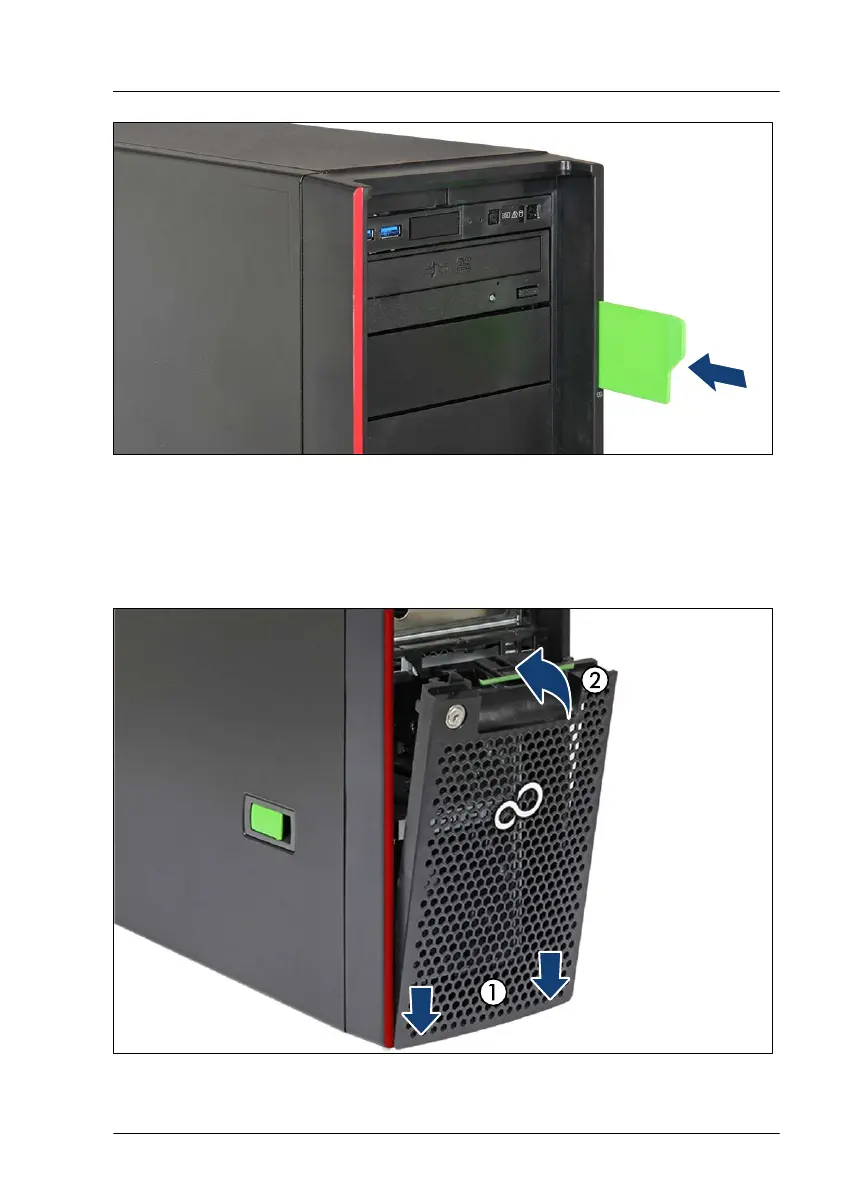

Figure 29: Installing the ID card
▶
Insert and push the ID card into its slot until it locks in place as shown.
4.5.3.2
Installing the HDD bay cover
Figure 30: Installing the HDD bay cover
Basic hardware procedures
TX1330 M4 Upgrade and Maintenance Manual 75
