7.5.1.4 Configurations with additional PCIe SSD modules
HDD/SSD
PCIe SSD

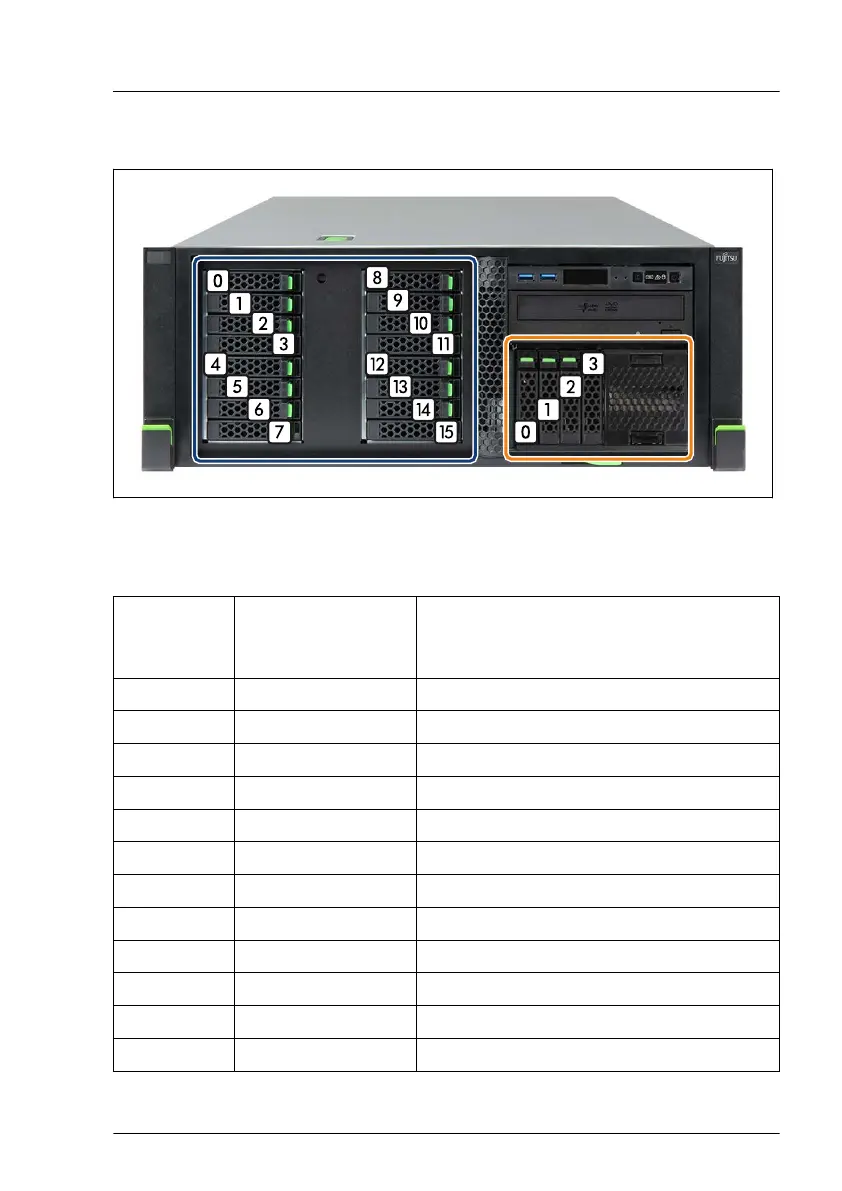

Figure 122: Configuration with up to 16 2.5-inch HDDs/SSDs and up to four PCIe SSDs
With SAS expander board and one SAS controller
Position Logical drive
number
ServerView RAID Manager display
name
(Enclosure number: Port number)
[0] 0 Vendor Product (1:0)
[1] 1 Vendor Product (1:1)
[2] 2 Vendor Product (1:2)
[3] 3 Vendor Product (1:3)
[4] 4 Vendor Product (1:4)
[5] 5 Vendor Product (1:5)
[6] 6 Vendor Product (1:6)
[7] 7 Vendor Product (1:7)
[8] 8 Vendor Product (1:8)
[9] 9 Vendor Product (1:9)
[10] 10 Vendor Product (1:10)
[11] 11 Vendor Product (1:11)
Hard disk drive (HDD) / solid state disk (SSD)
