28TX1330 M4

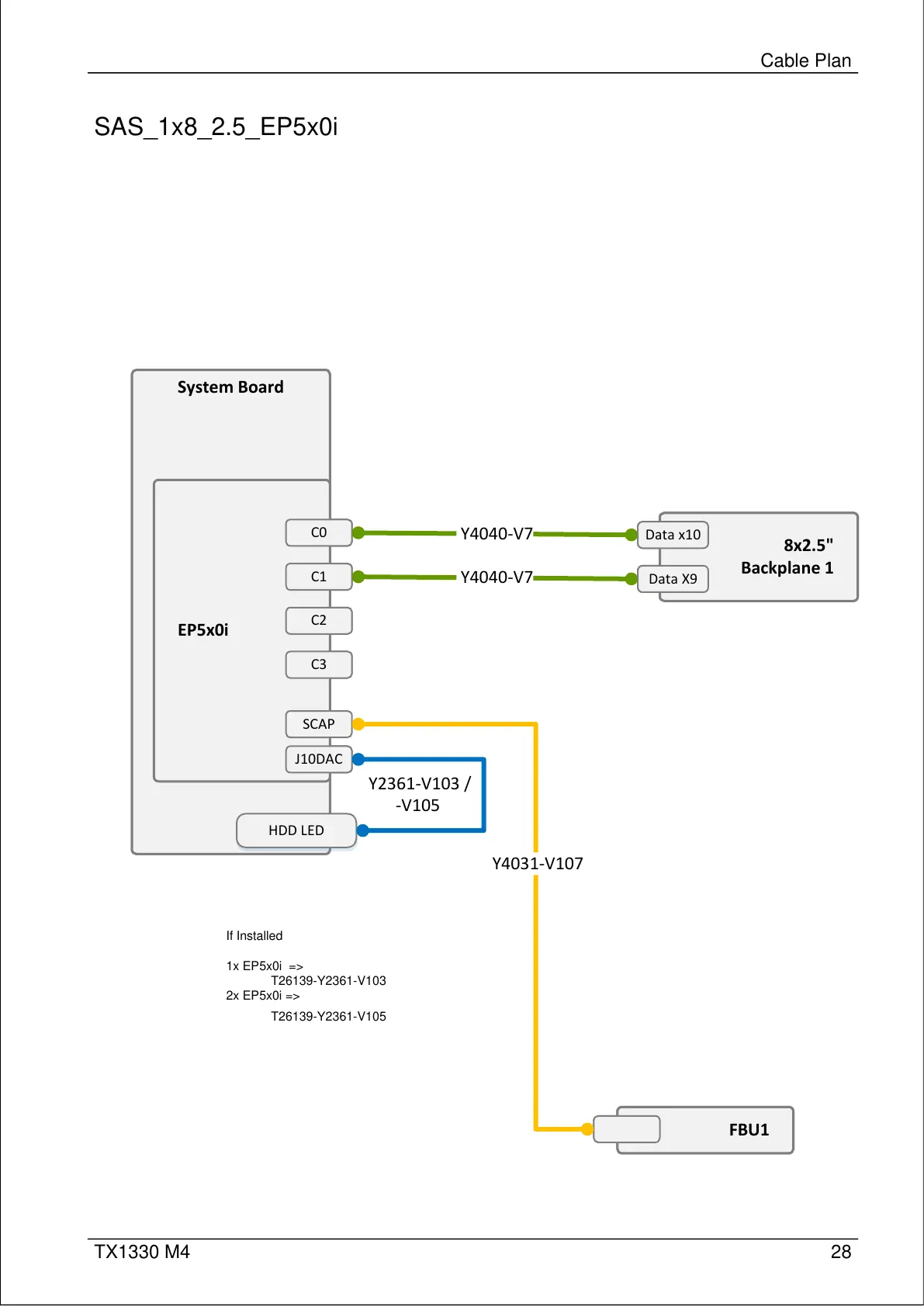

SAS_1x8_2.5_EP5x0i
Cable Plan
System Board
EP5x0i
C0
C1
C2
C3
J10DAC
System Board
EP5x0i
C0
C1
C2
C3
J10DAC
HDD LED
Y2361-V103 /
-V105
SCAP
Y4040-V7
Y4040-V7
FBU1FBU1
Y4031-V107
If Installed
1x EP5x0i =>
T26139-Y2361-V103
2x EP5x0i =>
T26139-Y2361-V105
8x2.5"
Backplane 1
Data x10
Data X9
8x2.5"
Backplane 1
Data x10
Data X9
