11.5 Handling the protectice cover
Installing the protective cover

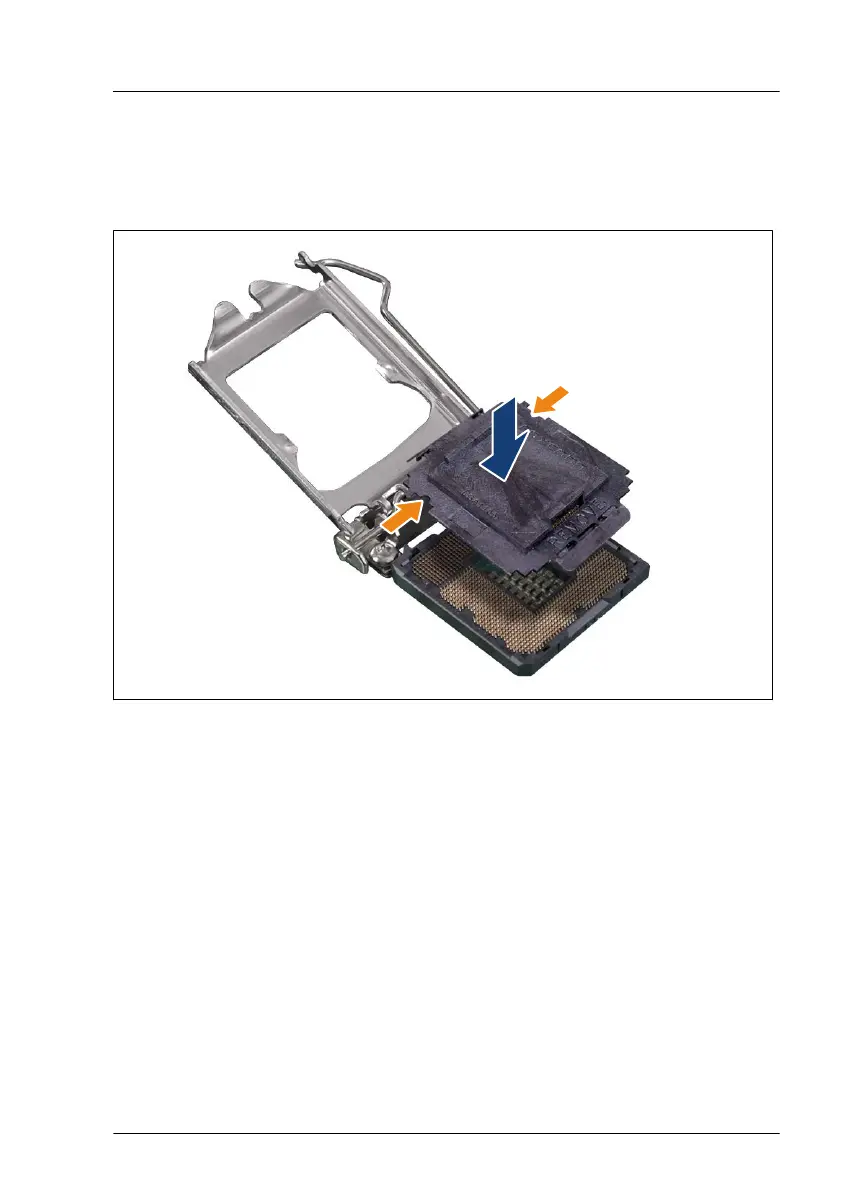

Figure 228: Attaching the protective socket cover
▶
Carefully lower the protective socket cover onto the CPU socket in a vertical
motion until it snaps in place.
Processor (CPU)
TX1330 M4 Upgrade and Maintenance Manual 355
