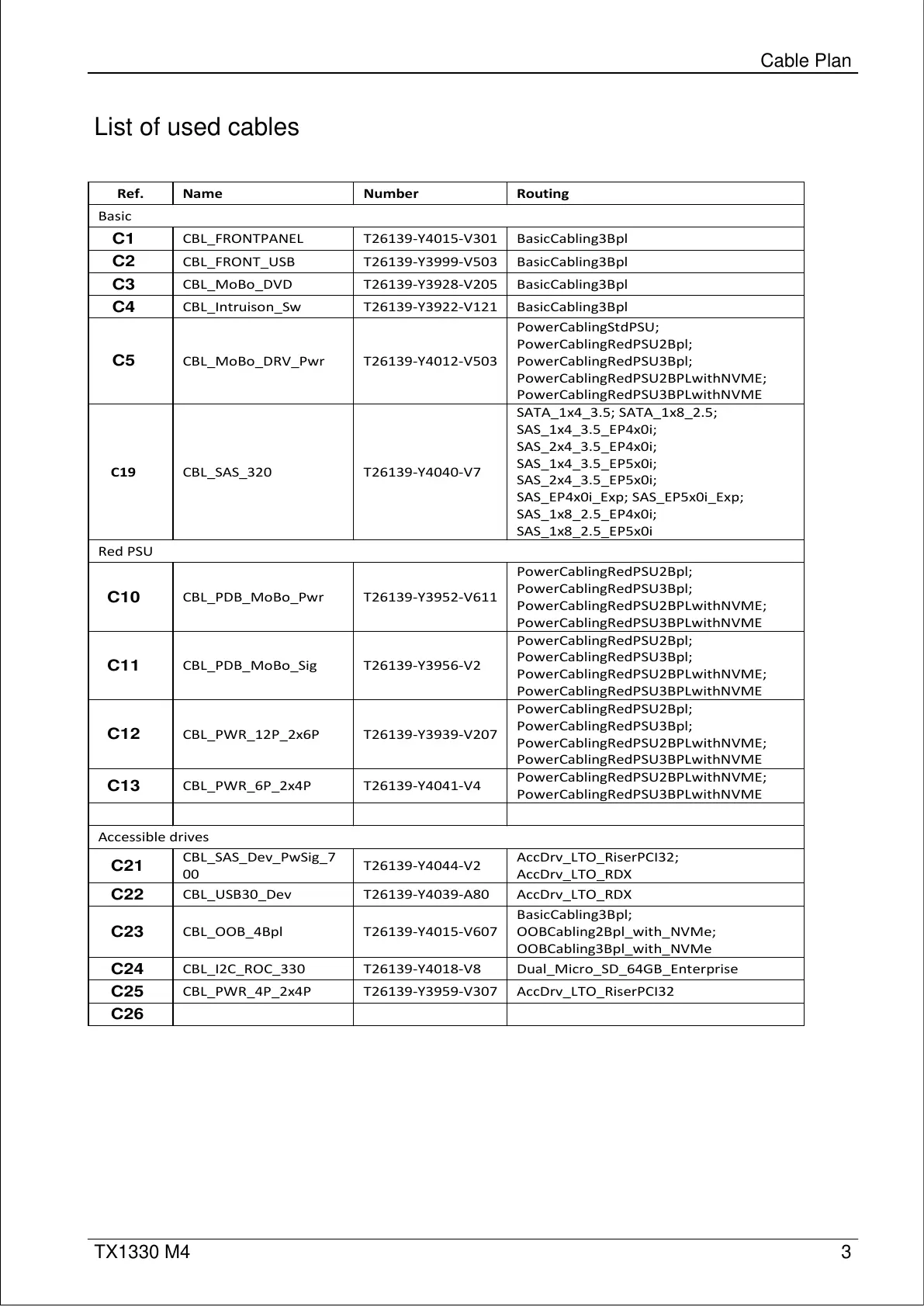

3TX1330 M4
List of used cables
Cable Plan
Ref.
Name
Number
Routing
Basic
C1
CBL_FRONTPANEL
T26139-Y4015-V301
BasicCabling3Bpl
C2
CBL_FRONT_USB
T26139-Y3999-V503
BasicCabling3Bpl
C3
CBL_MoBo_DVD
T26139-Y3928-V205
BasicCabling3Bpl
C4
CBL_Intruison_Sw
T26139-Y3922-V121
BasicCabling3Bpl
C5
CBL_MoBo_DRV_Pwr
T26139-Y4012-V503
PowerCablingStdPSU;
PowerCablingRedPSU2Bpl;
PowerCablingRedPSU3Bpl;
PowerCablingRedPSU2BPLwithNVME;
PowerCablingRedPSU3BPLwithNVME
C19
CBL_SAS_320
T26139-Y4040-V7
SATA_1x4_3.5; SATA_1x8_2.5;
SAS_1x4_3.5_EP4x0i;
SAS_2x4_3.5_EP4x0i;
SAS_1x4_3.5_EP5x0i;
SAS_2x4_3.5_EP5x0i;
SAS_EP4x0i_Exp; SAS_EP5x0i_Exp;
SAS_1x8_2.5_EP4x0i;
SAS_1x8_2.5_EP5x0i
Red PSU
C10
CBL_PDB_MoBo_Pwr
T26139-Y3952-V611
PowerCablingRedPSU2Bpl;
PowerCablingRedPSU3Bpl;
PowerCablingRedPSU2BPLwithNVME;
PowerCablingRedPSU3BPLwithNVME
C11
CBL_PDB_MoBo_Sig
T26139-Y3956-V2
PowerCablingRedPSU2Bpl;
PowerCablingRedPSU3Bpl;
PowerCablingRedPSU2BPLwithNVME;
PowerCablingRedPSU3BPLwithNVME
C12
CBL_PWR_12P_2x6P
T26139-Y3939-V207
PowerCablingRedPSU2Bpl;
PowerCablingRedPSU3Bpl;
PowerCablingRedPSU2BPLwithNVME;
PowerCablingRedPSU3BPLwithNVME
C13
CBL_PWR_6P_2x4P
T26139-Y4041-V4
PowerCablingRedPSU2BPLwithNVME;
PowerCablingRedPSU3BPLwithNVME
Accessible drives
C21
CBL_SAS_Dev_PwSig_7
00
T26139-Y4044-V2
AccDrv_LTO_RiserPCI32;
AccDrv_LTO_RDX
C22
CBL_USB30_Dev
T26139-Y4039-A80
AccDrv_LTO_RDX
C23
CBL_OOB_4Bpl
T26139-Y4015-V607
BasicCabling3Bpl;
OOBCabling2Bpl_with_NVMe;
OOBCabling3Bpl_with_NVMe
C24
CBL_I2C_ROC_330
T26139-Y4018-V8
Dual_Micro_SD_64GB_Enterprise
C25
CBL_PWR_4P_2x4P
T26139-Y3959-V307
AccDrv_LTO_RiserPCI32
C26
