Note on the onboard LAN controller
The system board is equipped with a Gigabit Ethernet Controller that
supports transfer rates of 10 Mbit/s, 100 Mbit/s and 1 Gbit/s.
The separate management LAN connector is used as a management
interface (iRMC S5) and is prepared for operation with the Remote
Management. Optionally LAN connector 1 can also be used for iRMC
S5 server management.
17.2.3.4 Indicator on hot-plug PSU

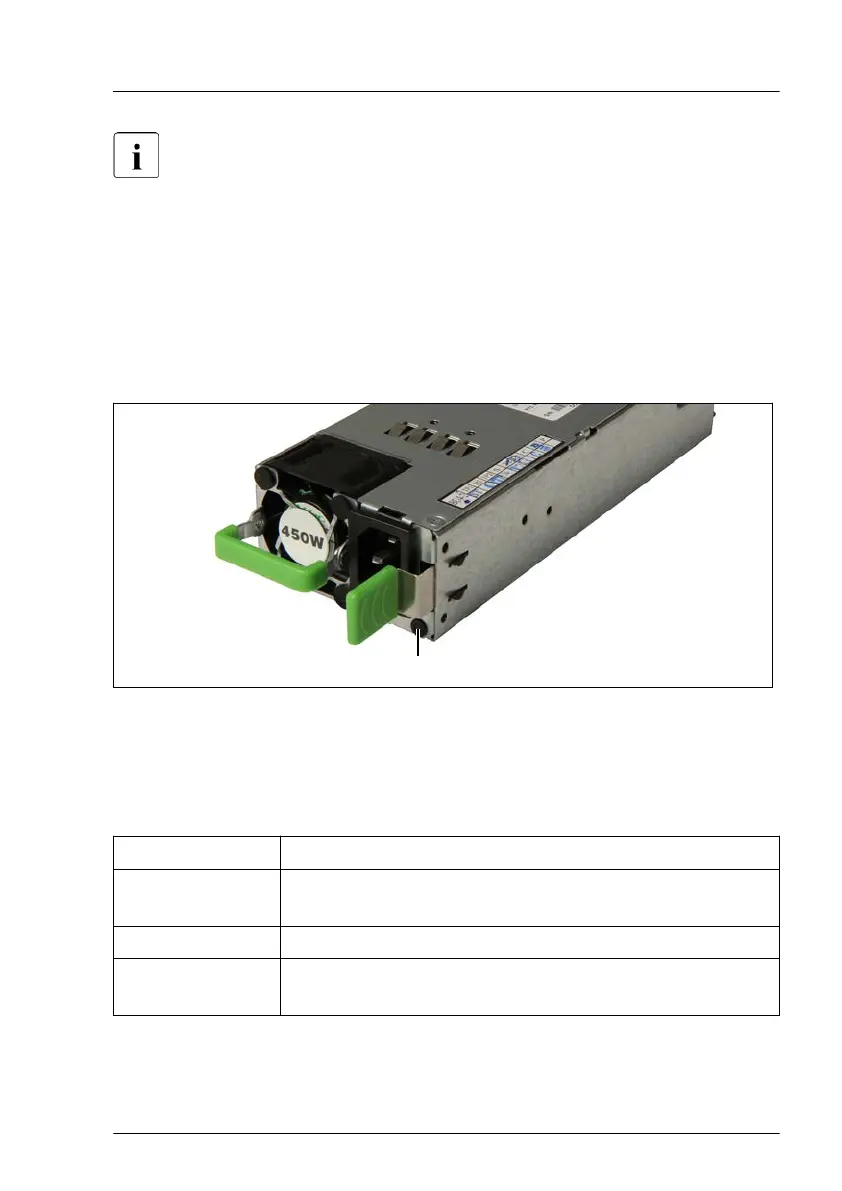

Figure 339: PSU status indicator
1 PSU status indicator
PSU status indicator (1)
Status Description
flashing green The server is switched off, but mains voltage is present
(standby mode).
green on The server is switched on and operating properly.
flashing orange An overload has been detected. The PSU is still running,
but failure might be imminent.
