Installing a 3.5-inch dummy module
CAUTION
▶
If the removed HDD module is not replaced immediately, always
replace a dummy module into the unused HDD bay to comply with
applicable EMC regulations and satisfy cooling requirements.

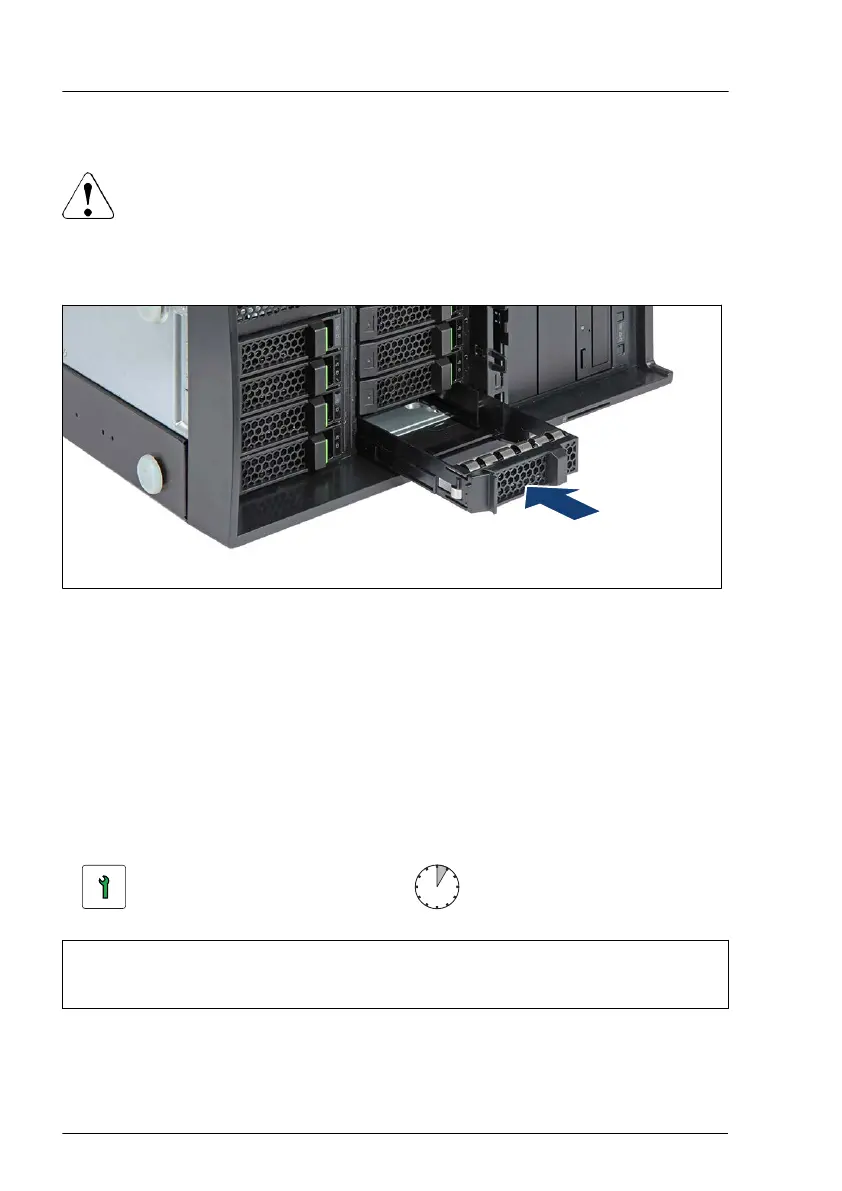

Figure 104: Installing the 3.5-inch dummy module
▶
Push the dummy module into the empty bay until it engages.
Concluding steps
▶
If applicable, "Reassembling" on page
66.
7.4.5
Replacing a 3.5-inch HDD module
Customer Replaceable
Unit (CRU)
Hardware: 5 minutes
Tools: – Installation frame included: tool-less
–
Installation frame excluded: Phillips PH1 / (+) No. 1 screw driver
Hard disk drive (HDD) / solid state disk (SSD)
190 Upgrade and Maintenance Manual TX1330 M4
