4.5.3.5 Locking the server

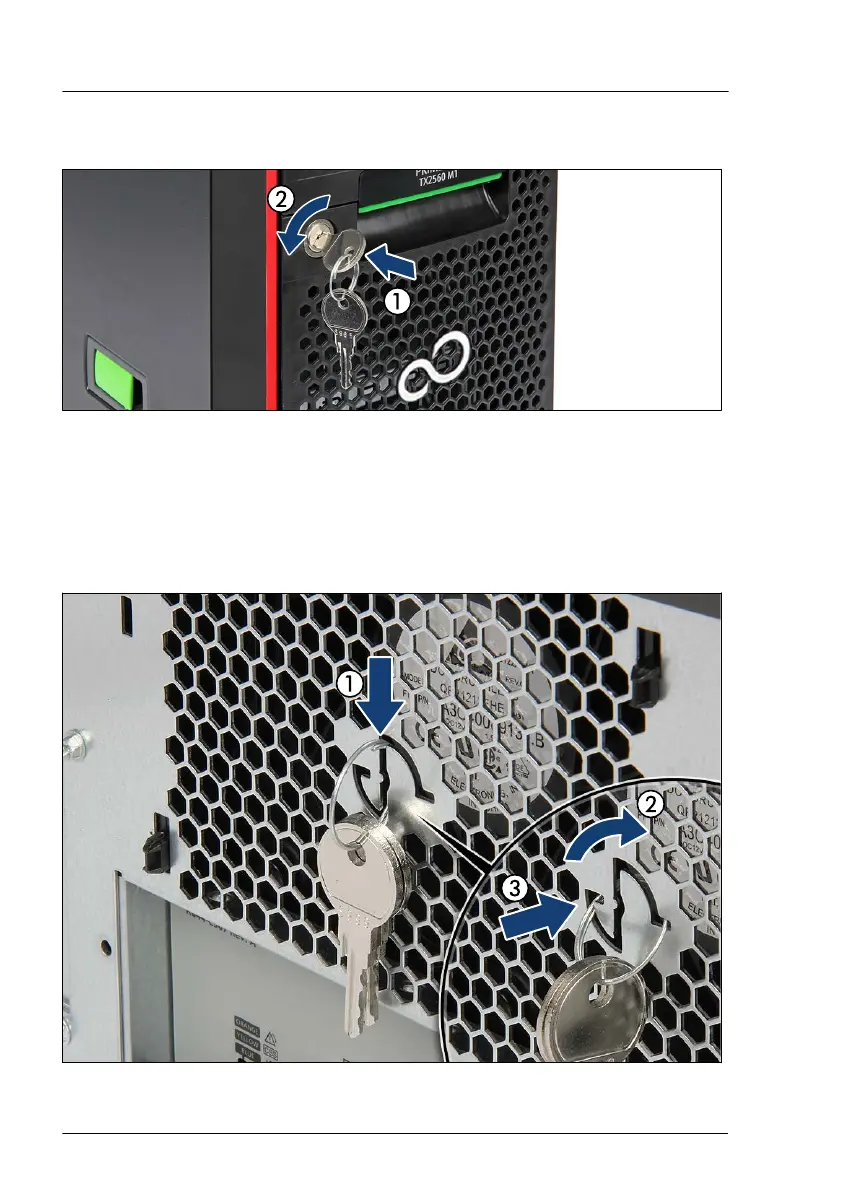

Figure 33: Locking the server
▶
Insert the key into the lock on the server front (1).
▶
T
urn the key counter-clockwise to lock the front and side covers (2).
▶
Remove the key from the server front.
Figure 34: Storing the key ring
Basic hardware procedures
78 Upgrade and Maintenance Manual TX1330 M4
