4.5.3.4 Installing the side cover

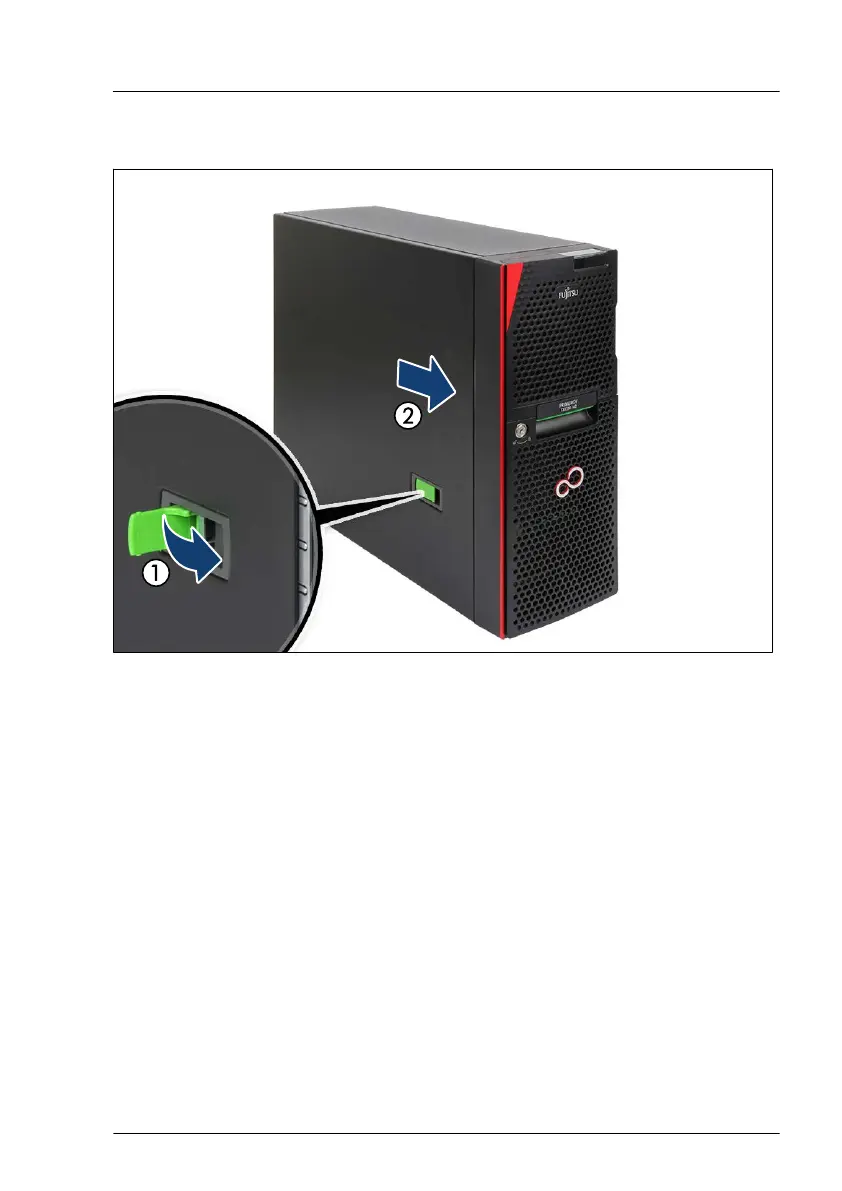

Figure 32: Installing the side cover
▶
Open the locking lever on the side cover.
▶
Fit the side cover on the chassis, recessed by 2 cm.
▶
Close the locking lever on the side cover (1). This will slide the top cover
shut engaging the locking mechanism (2).
▶
Connect all cables except the power cord to the server rear
.
Basic hardware procedures
