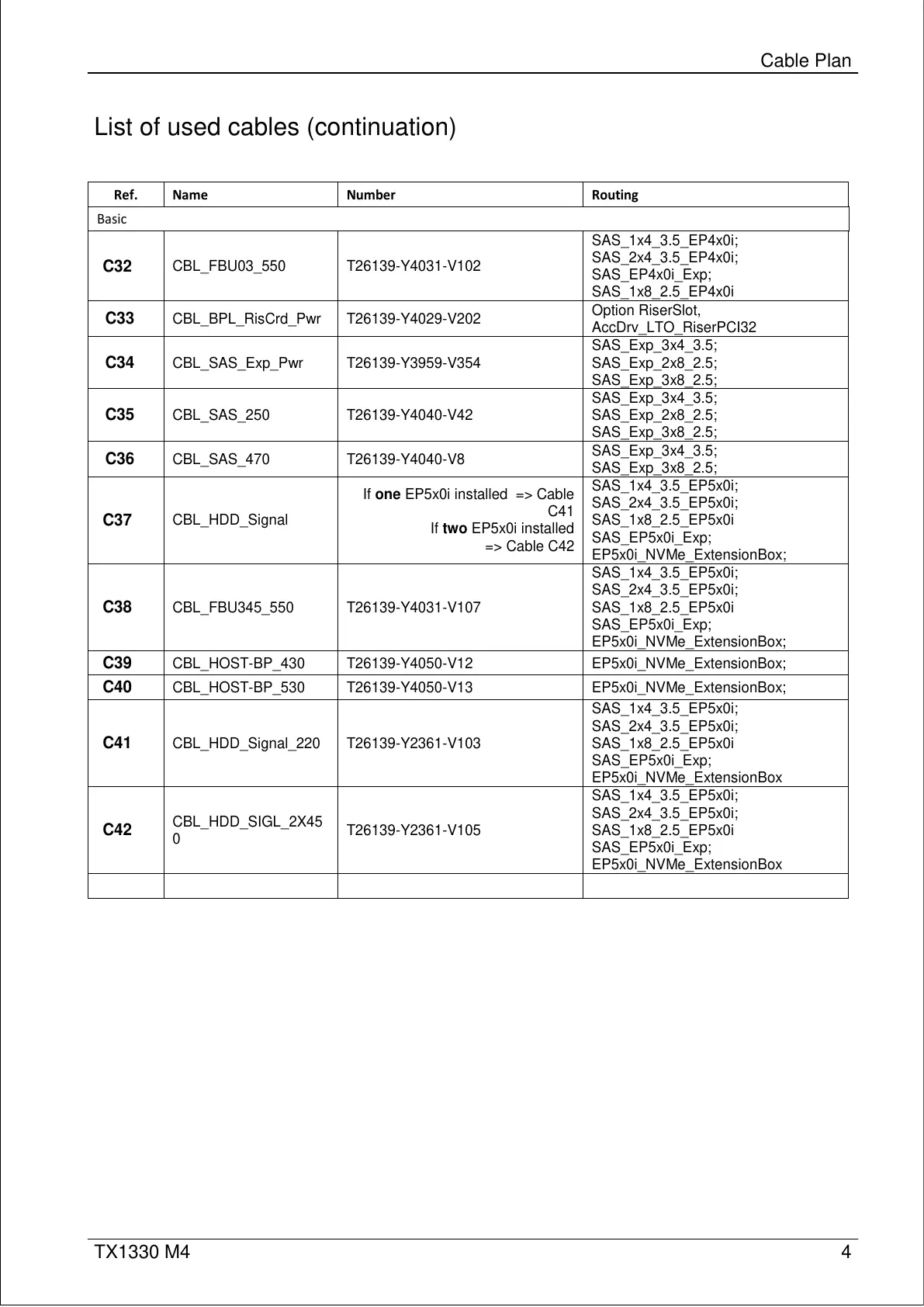

List of used cables (continuation)
Cable Plan
Ref.
Name
Number
Routing
Basic
C32
CBL_FBU03_550
T26139-Y4031-V102
SAS_1x4_3.5_EP4x0i;
SAS_2x4_3.5_EP4x0i;
SAS_EP4x0i_Exp;
SAS_1x8_2.5_EP4x0i
C33
CBL_BPL_RisCrd_Pwr
T26139-Y4029-V202
Option RiserSlot,
AccDrv_LTO_RiserPCI32
C34
CBL_SAS_Exp_Pwr
T26139-Y3959-V354
SAS_Exp_3x4_3.5;
SAS_Exp_2x8_2.5;
SAS_Exp_3x8_2.5;
C35
CBL_SAS_250
T26139-Y4040-V42
SAS_Exp_3x4_3.5;
SAS_Exp_2x8_2.5;
SAS_Exp_3x8_2.5;
C36
CBL_SAS_470
T26139-Y4040-V8
SAS_Exp_3x4_3.5;
SAS_Exp_3x8_2.5;
C37
CBL_HDD_Signal
If one EP5x0i installed => Cable
C41
If two EP5x0i installed
=> Cable C42
SAS_1x4_3.5_EP5x0i;
SAS_2x4_3.5_EP5x0i;
SAS_1x8_2.5_EP5x0i
SAS_EP5x0i_Exp;
EP5x0i_NVMe_ExtensionBox;
C38
CBL_FBU345_550
T26139-Y4031-V107
SAS_1x4_3.5_EP5x0i;
SAS_2x4_3.5_EP5x0i;
SAS_1x8_2.5_EP5x0i
SAS_EP5x0i_Exp;
EP5x0i_NVMe_ExtensionBox;
C39
CBL_HOST-BP_430
T26139-Y4050-V12
EP5x0i_NVMe_ExtensionBox;
C40
CBL_HOST-BP_530
T26139-Y4050-V13
EP5x0i_NVMe_ExtensionBox;
C41
CBL_HDD_Signal_220
T26139-Y2361-V103
SAS_1x4_3.5_EP5x0i;
SAS_2x4_3.5_EP5x0i;
SAS_1x8_2.5_EP5x0i
SAS_EP5x0i_Exp;
EP5x0i_NVMe_ExtensionBox
C42
CBL_HDD_SIGL_2X45
0
T26139-Y2361-V105
SAS_1x4_3.5_EP5x0i;
SAS_2x4_3.5_EP5x0i;
SAS_1x8_2.5_EP5x0i
SAS_EP5x0i_Exp;
EP5x0i_NVMe_ExtensionBox
