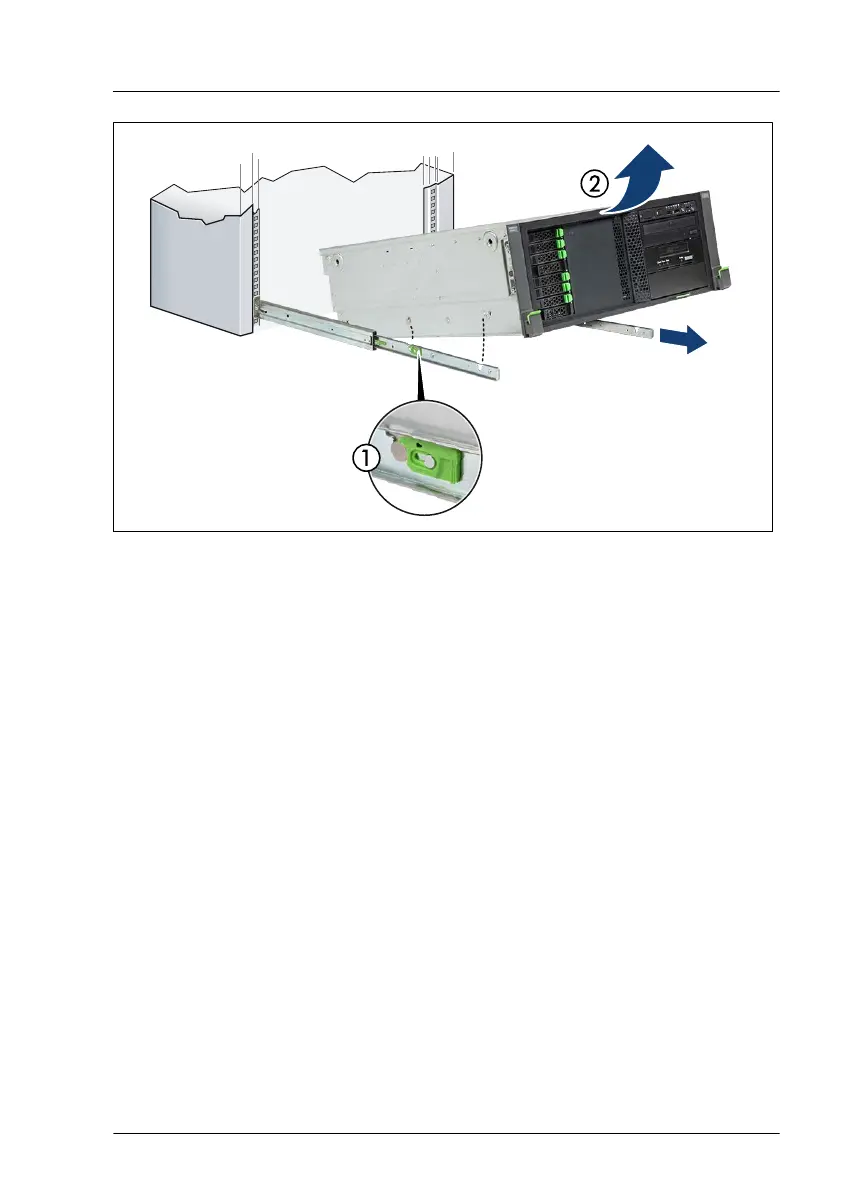

Figure 5: Removing the server from the rack
▶
Release the locking bars on both rack rails (1).
▶
Lift the server out of the rack rails (2) and place it on an even surface.
Basic hardware procedures
TX1330 M4 Upgrade and Maintenance Manual 53
