Remove the screw (see circle).

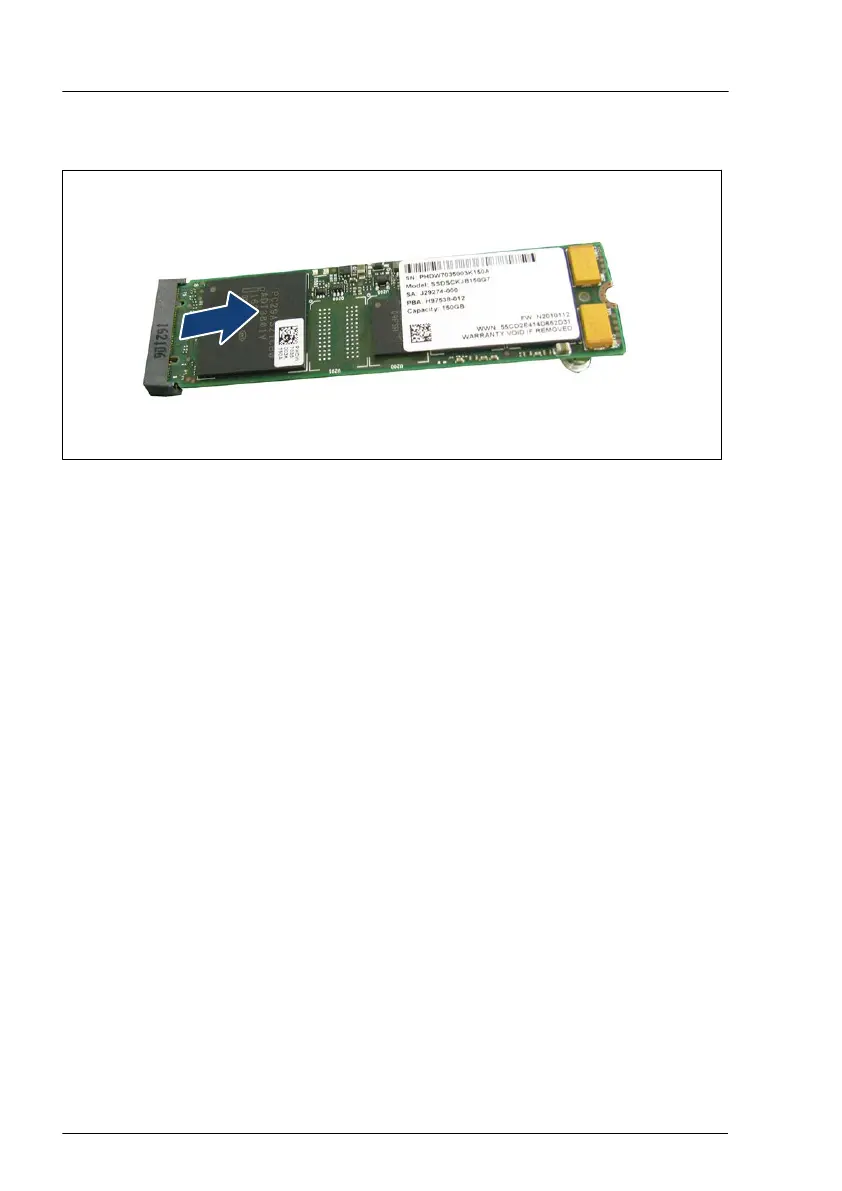

Figure 289: Removing the M.2 SSD (B)
▶
Pull the M.2 SSD out of its slot.
If no new M.2 SSD will be installed:
▶
Fasten the screw to the corresponding hexagon stand-of
f (see orange
circles in
Figure 285).
Concluding steps
▶
If applicable, "Installing an expansion card" on page 299.
▶
If applicable, install the SAS expander board holder, see "Installing the SAS
expander board holder " on page 271.
▶
Install the system fan module, see "Installing the system fan module" on
page 85.
▶
"Reassembling" on page 66.
▶
"Connecting the power cord" on page 79.
▶
"Switching on the server" on page 81.
System board and components
438 Upgrade and Maintenance Manual TX1330 M4
