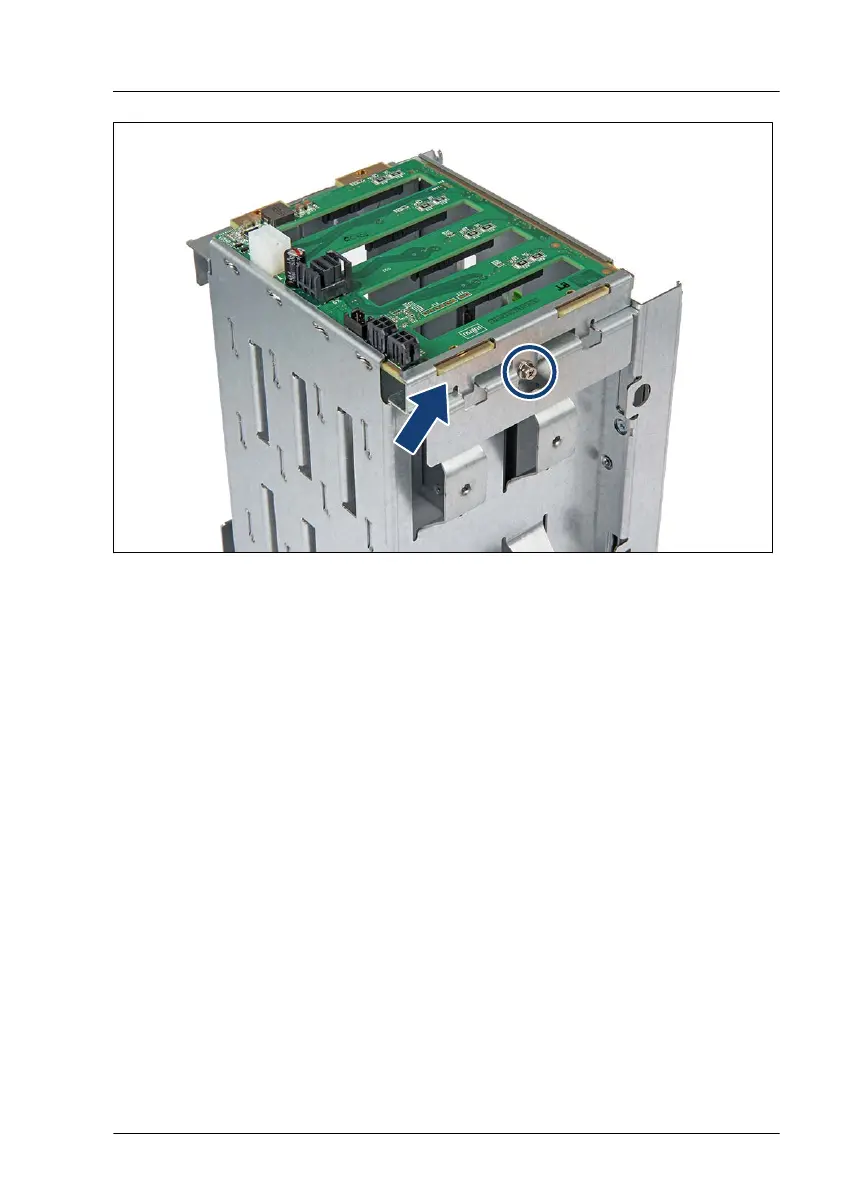

Figure 162: Installing the HDD backplane (B)
▶
Place the bracket (see arrow) and fasten it with one screw (see circle).
▶
Fasten the HDD backplane with two screws (see Figure 158).
▶
Install the 4x 3.5-inch HDD extension box, see "Installing the 4x 3.5-inch
HDD extension box" on page
257.
Concluding steps
▶
"Reassembling" on page
66.
▶
Install all HDDs into their original bays in the HDD extension box, see
"Installing 3.5-inch HDD modules" on page 185.
▶
"Connecting the power cord" on page 79.
▶
"Switching on the server" on page 81.
Hard disk drive (HDD) / solid state disk (SSD)
TX1330 M4 Upgrade and Maintenance Manual 267
