Installing the 4x 3.5-inch HDD extension box
CAUTION
▶
If you install an extension box a redundant power supply is
necessary.

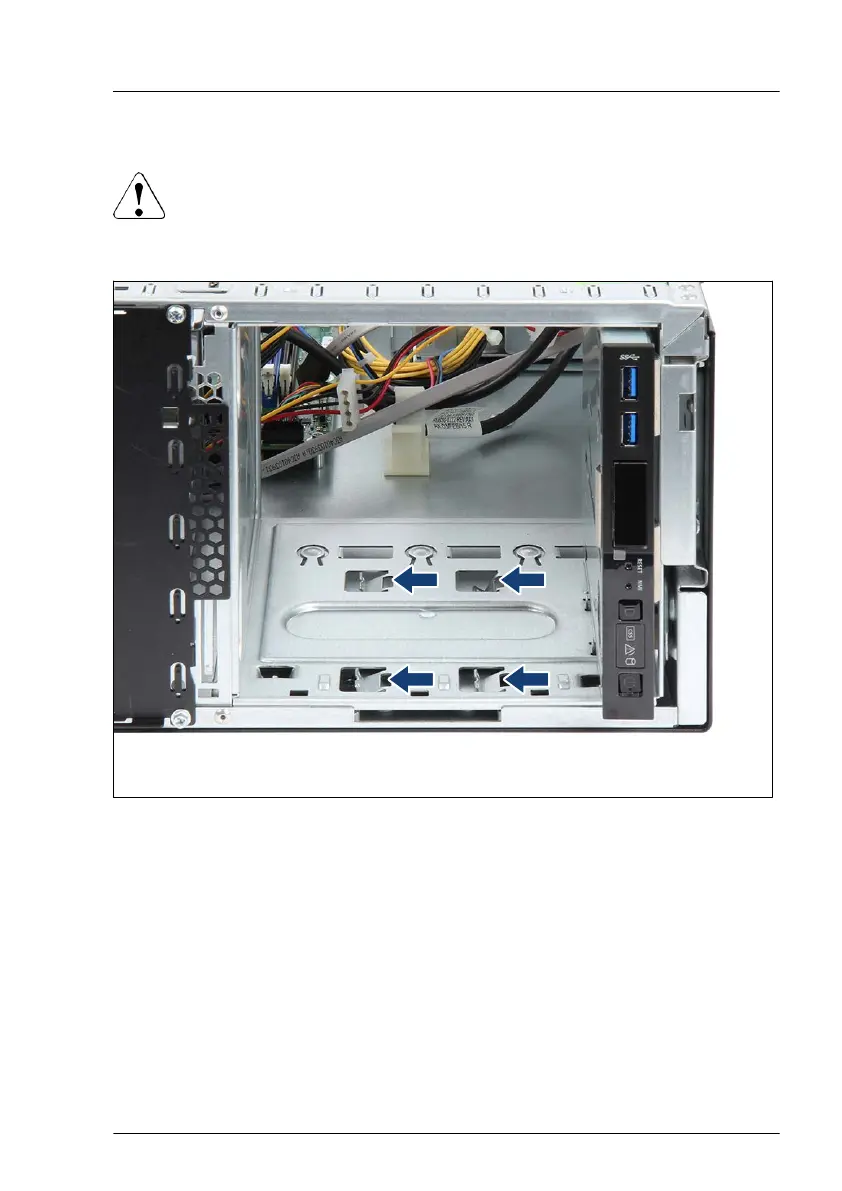

Figure 154: Bending in mounting brackets
▶
Using a screw driver, bend the mounting brackets of the top and middle
installation bays (bay 1 and bay 2) inwards (see close-up):
▶
Bend in the four mounting brackets on each side of the drive cage.
▶
Open the accessible drive locking bar, see"Opening the accessible drive
locking bar" on page 89.
Hard disk drive (HDD) / solid state disk (SSD)
