Remove all HDD modules from the HDD extension box, see "Removing 3.5-
inch HDD modules" on page 188
.
▶
"Getting access to the component" on page 50.
Removing the defective HDD backplane
▶
Unlock and pull the 4x 3.5-inch HDD extension box out of its installation
bays, see "Removing the 4x 3.5-inch HDD extension box" on page 260.

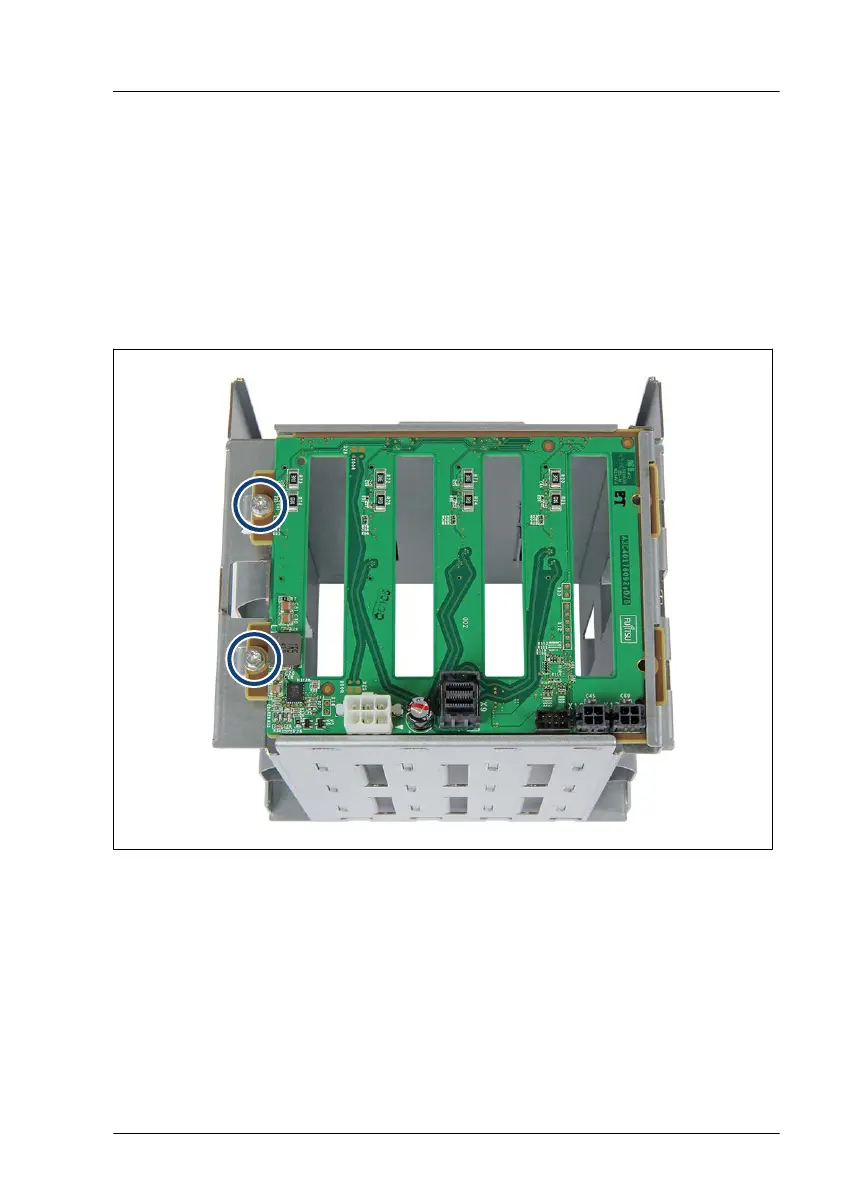

Figure 158: Removing the HDD backplane (A)
▶
Remove the two screws (see circles).
Hard disk drive (HDD) / solid state disk (SSD)
TX1330 M4 Upgrade and Maintenance Manual 263
