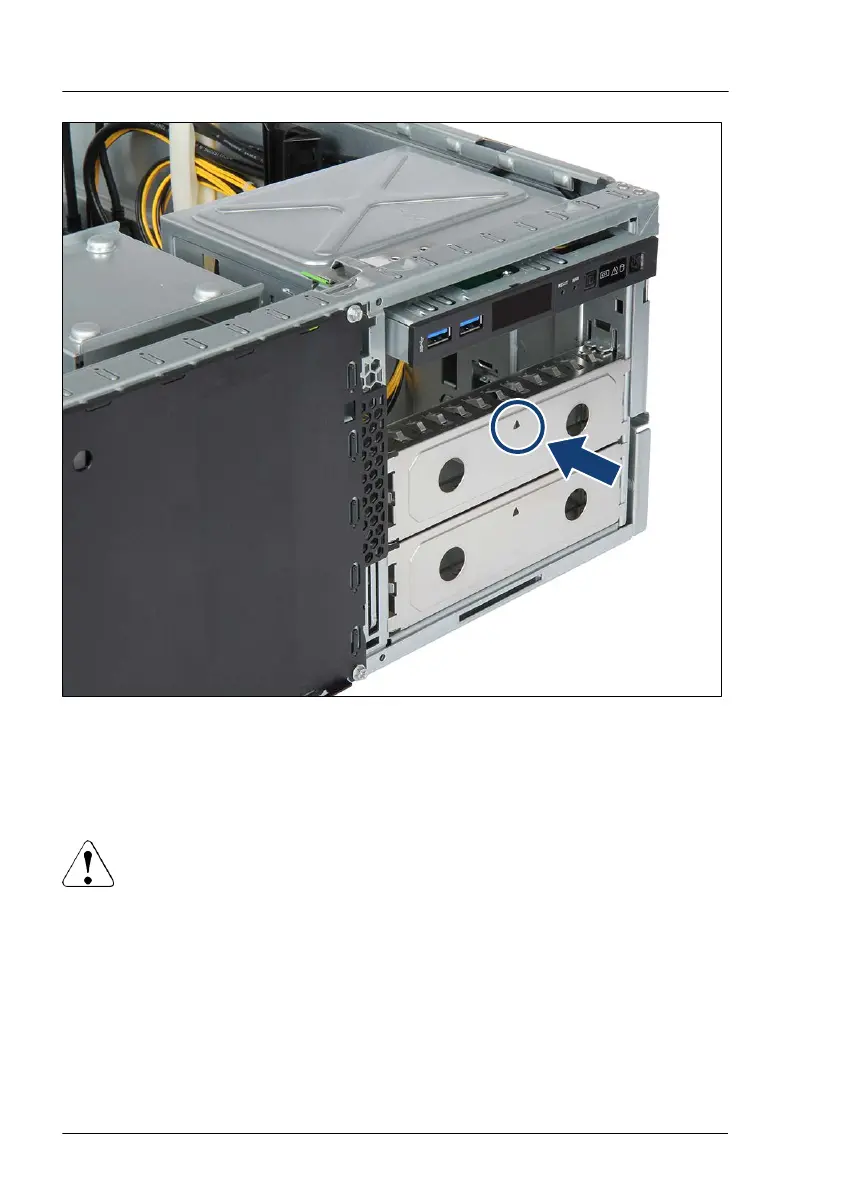

Figure 50: Installing an accessible drive filler cover
▶
Hold the accessible drive filler cover by its two handle recesses and insert it
into the empty installation bays with the punched-out arrow symbol facing up
(see circle).
CAUTION
Always replace filler covers into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
Basic hardware procedures
94 Upgrade and Maintenance Manual TX1330 M4
