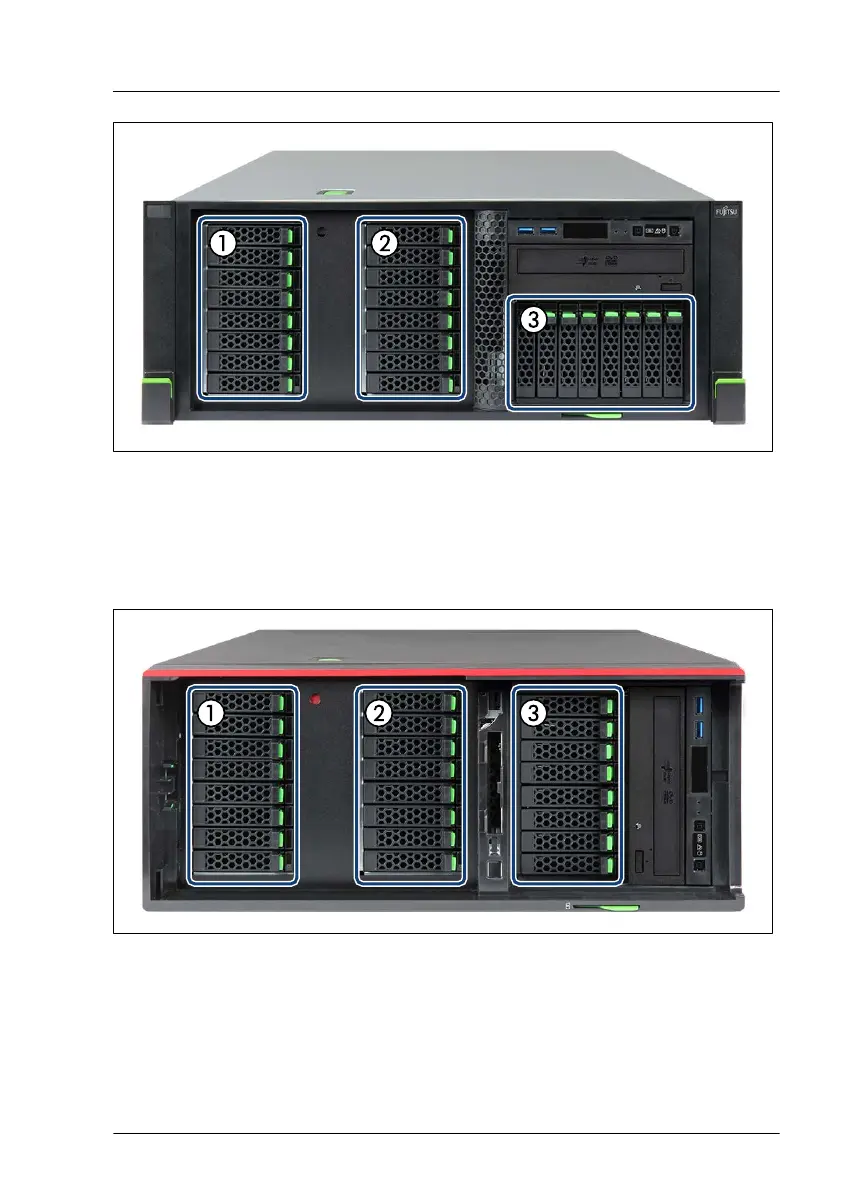

Figure 87: Example with three 2.5-inch HDD SAS backplanes - rack model
1 SAS backplane 1 in HDD cage 1 (basic
configuration)
2
SAS backplane 2 in optional HDD cage
2
3 SAS backplane 3 in optional 8x 2.5-
inch HDD/SSD extension box
Figure 88: Example with three 2.5-inch HDD SAS backplanes - floorstand model
1 SAS backplane 1 in HDD cage 1 (basic
configuration)
2 SAS backplane 2 in optional HDD cage
2
3 SAS backplane 3 in optional 8x 2.5-
inch HDD/SSD extension box
Hard disk drive (HDD) / solid state disk (SSD)
