Preliminary steps
▶
If applicable, "Getting access to the component" on page 50
.
▶
Locate the correct drive bay, see "3.5-inch HDD configurations" on
page 181.
Removing a 3.5-inch HDD dummy module

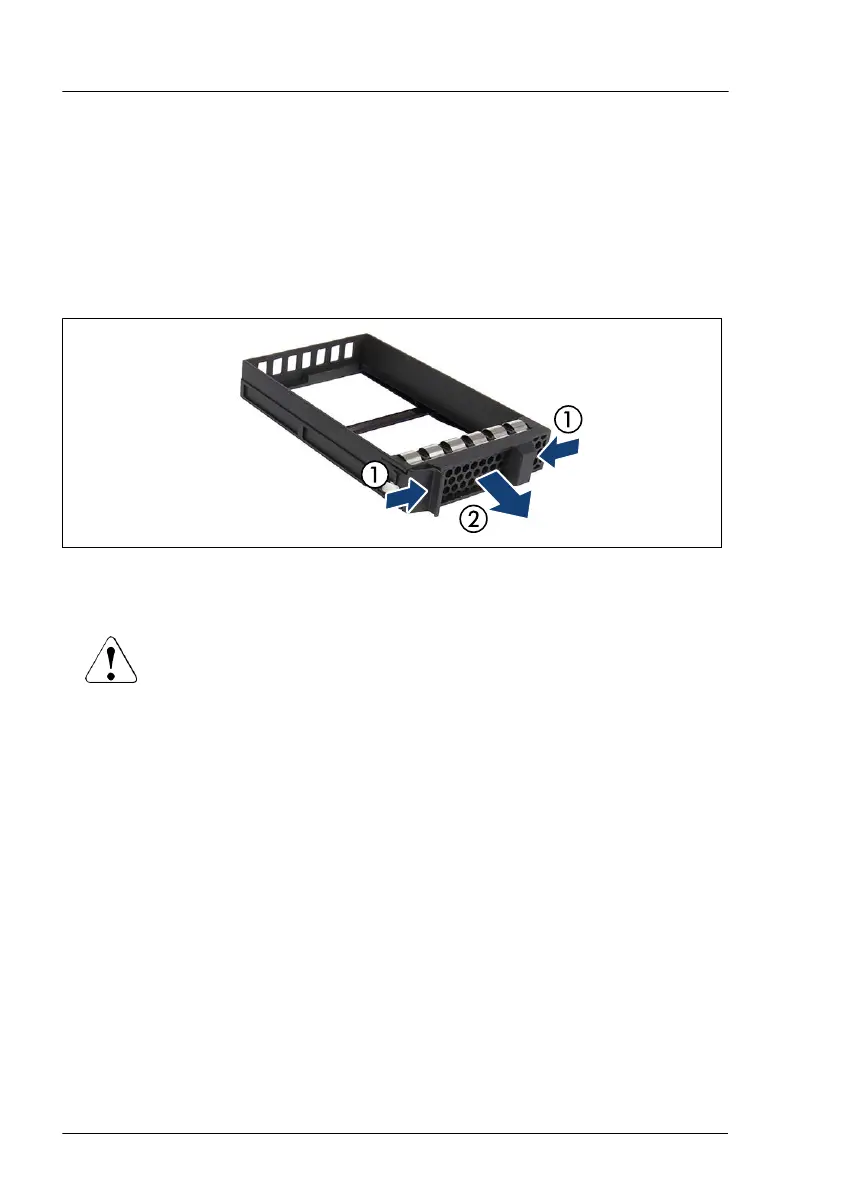

Figure 101: Removing the 3.5-inch dummy module
▶
Press both tabs together (1) and pull the dummy module out of its bay (2).
CAUTION
▶
Keep the dummy module for future use.
▶
Always replace dummy modules into unused HDD/SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
Hard disk drive (HDD) / solid state disk (SSD)
186 Upgrade and Maintenance Manual TX1330 M4
