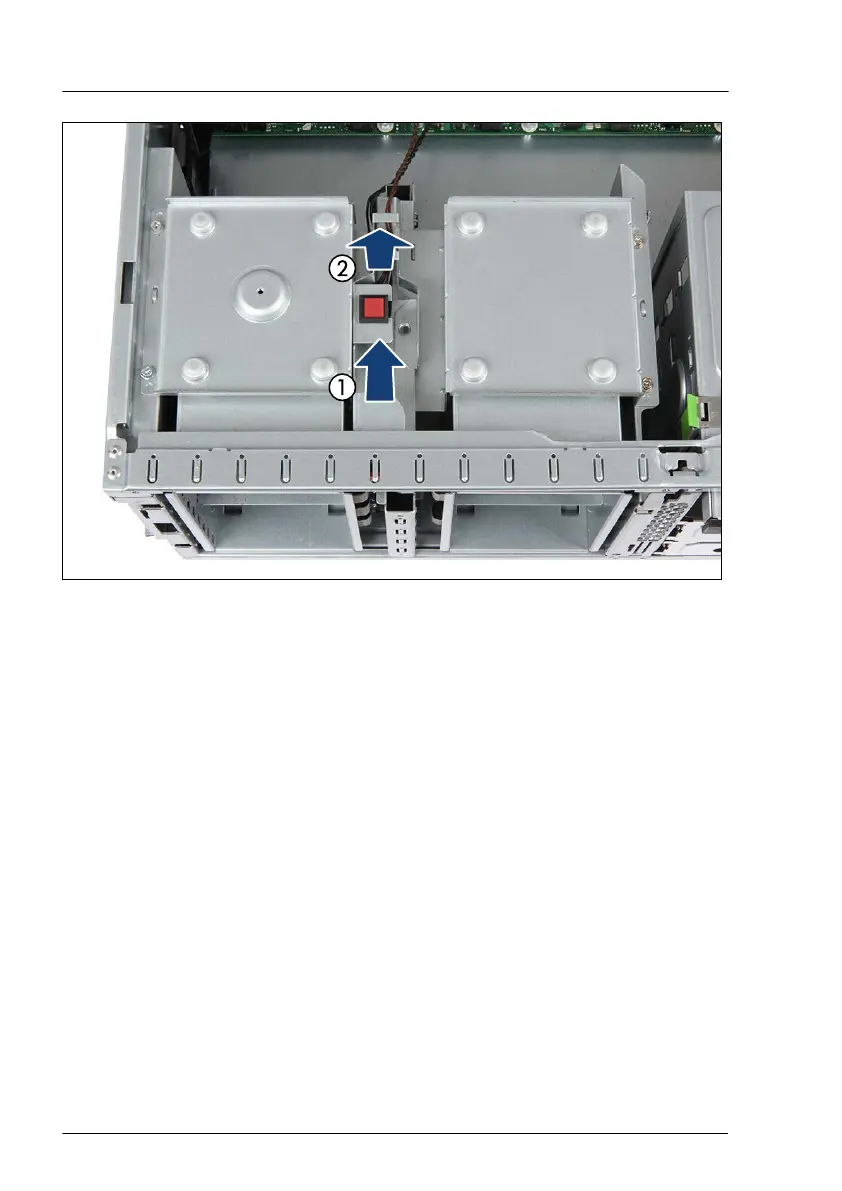

Figure 128: Removing the intrusion switch holder (B)
▶
Push back the intrusion switch holder until it disengages from the HDD bay
top cover (1).
▶
Remove the intrusion switch holder (2) and set aside.
▶
Leave the intrusion switch cable connected to the system board.
Hard disk drive (HDD) / solid state disk (SSD)
224 Upgrade and Maintenance Manual TX1330 M4
