Fujitsu PRIMERGY TX1330 M4

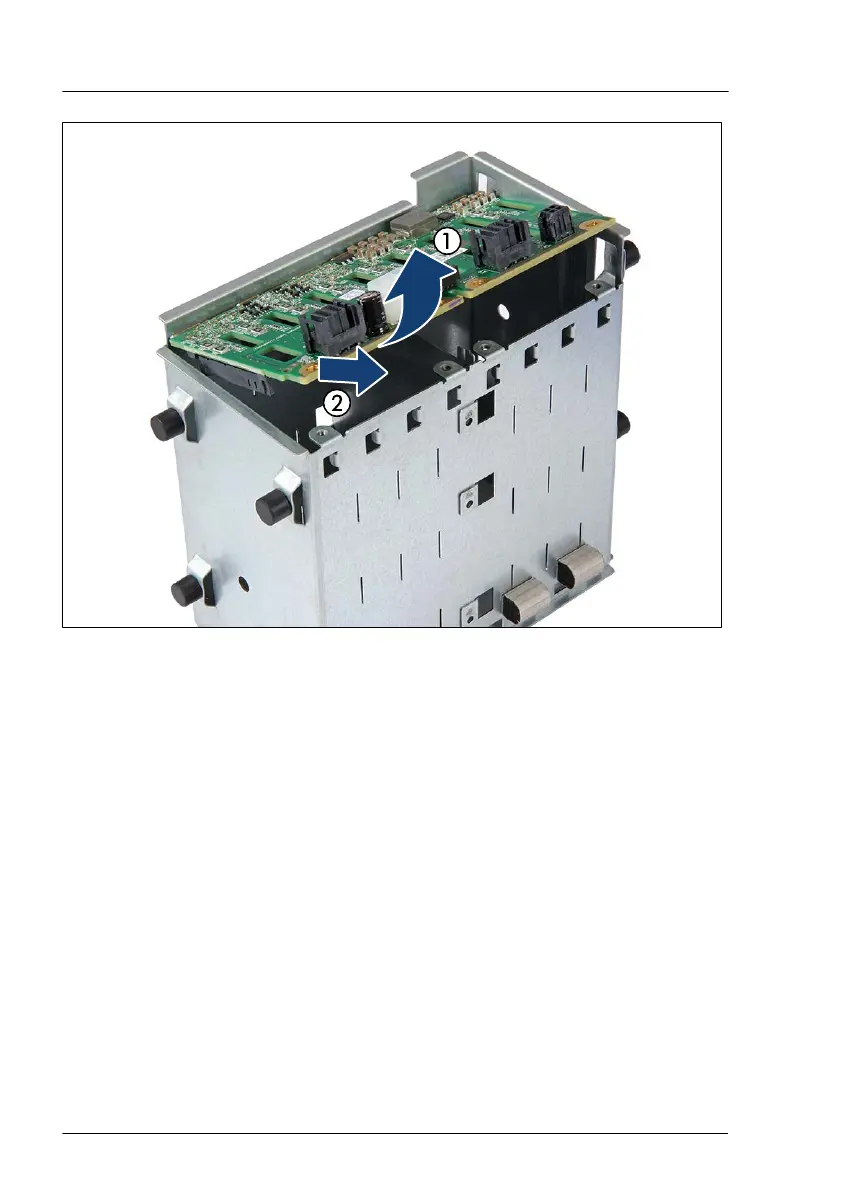

Figure 132: Removing the defective 2.5-inch HDD/SSD SAS backplane (B)
▶
Fold up the defective 2.5-inch HDD/SSD SAS backplane (1) and at a slight
angle, remove it from the recesses in the HDD cage (2).
Hard disk drive (HDD) / solid state disk (SSD)
228 Upgrade and Maintenance Manual TX1330 M4
