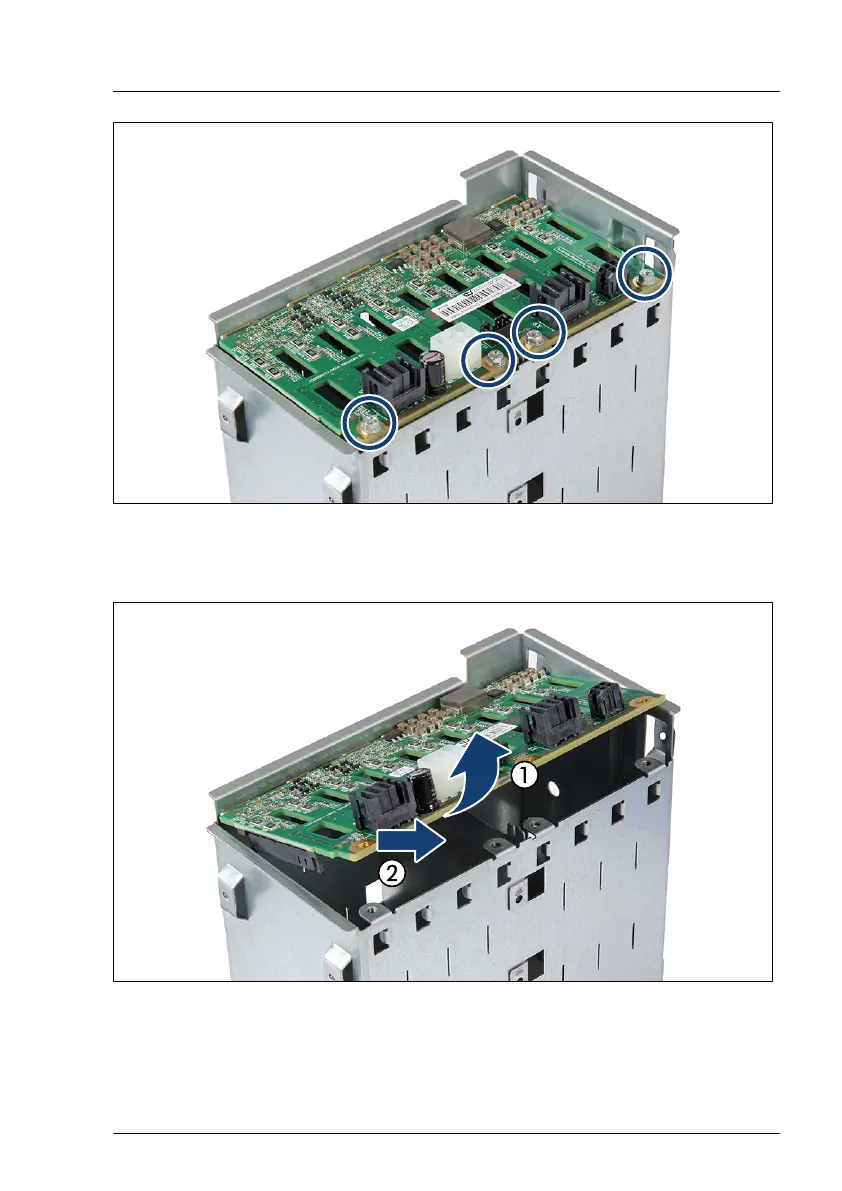

Figure 148: Removing the HDD/SSD backplane (A)
▶
Remove the four screws (see circles).
Figure 149: Removing the HDD/SSD backplane (B)
▶
Fold up the HDD/SSD backplane and at a slight angle (1), remove it from
the recesses in the HDD extension box (2).
Hard disk drive (HDD) / solid state disk (SSD)
TX1330 M4 Upgrade and Maintenance Manual 251
