Fujitsu PRIMERGY TX1330 M4

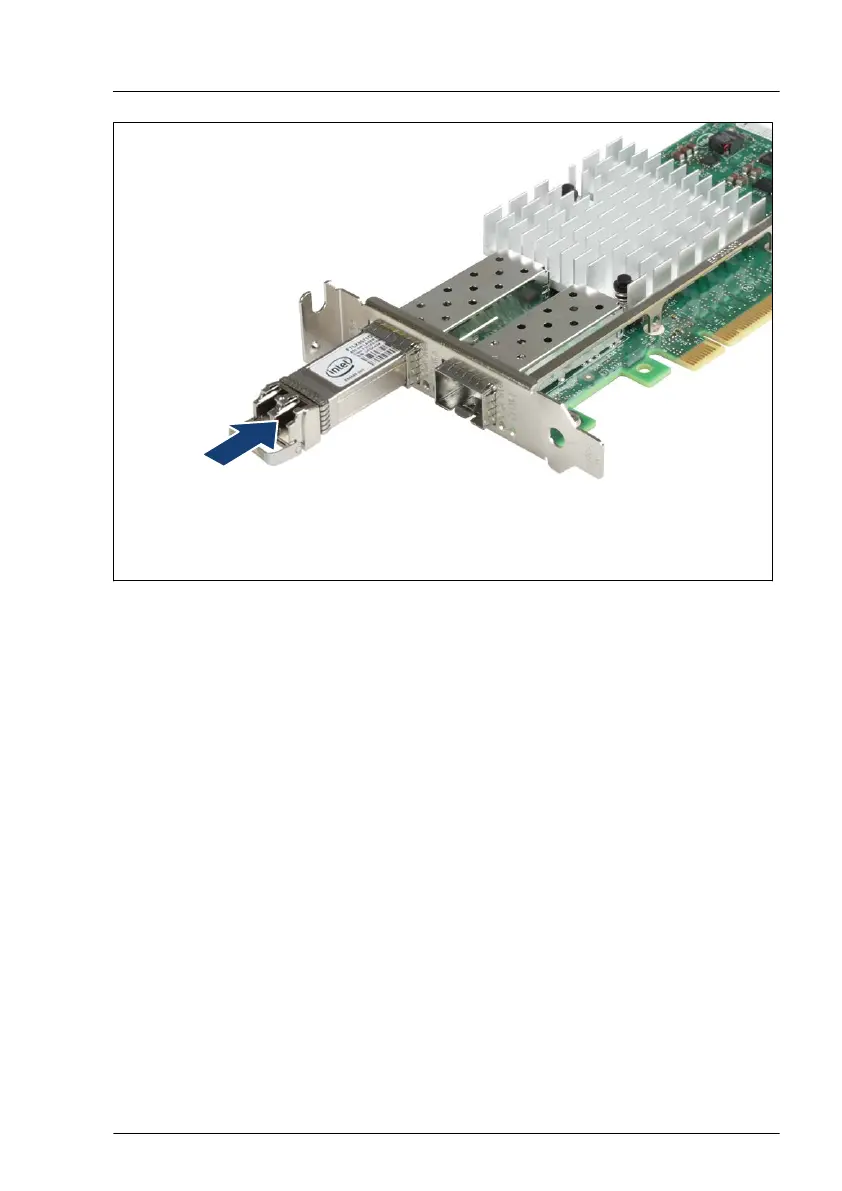

Figure 182: Inserting the SFP+ transceiver module
▶
Insert and slide the SFP+ transceiver module into the socket connector as
far as it will go.
Expansion cards and backup units
TX1330 M4 Upgrade and Maintenance Manual 293
