Fujitsu PRIMERGY TX1330 M4

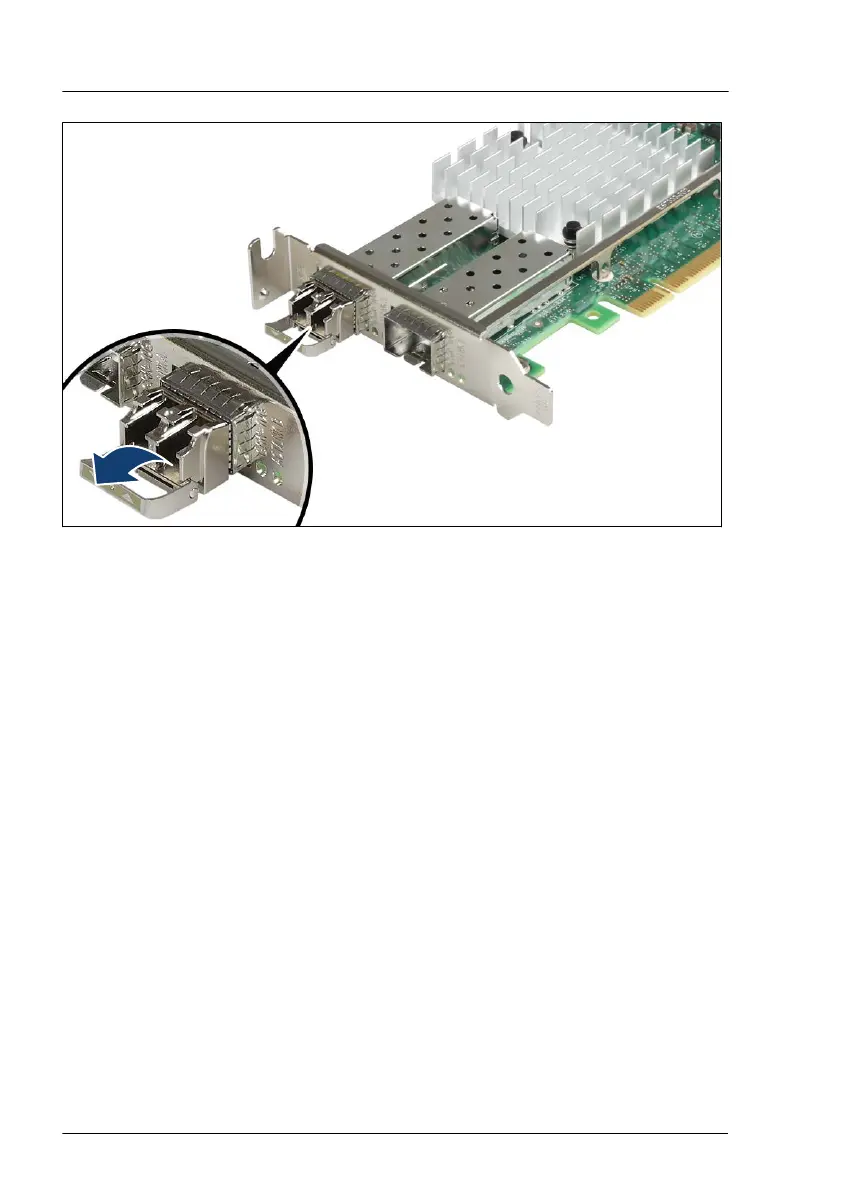

Figure 187: Unlatching the locking bail
▶
Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module to eject the transceiver from the socket connector.
Expansion cards and backup units
298 Upgrade and Maintenance Manual TX1330 M4
